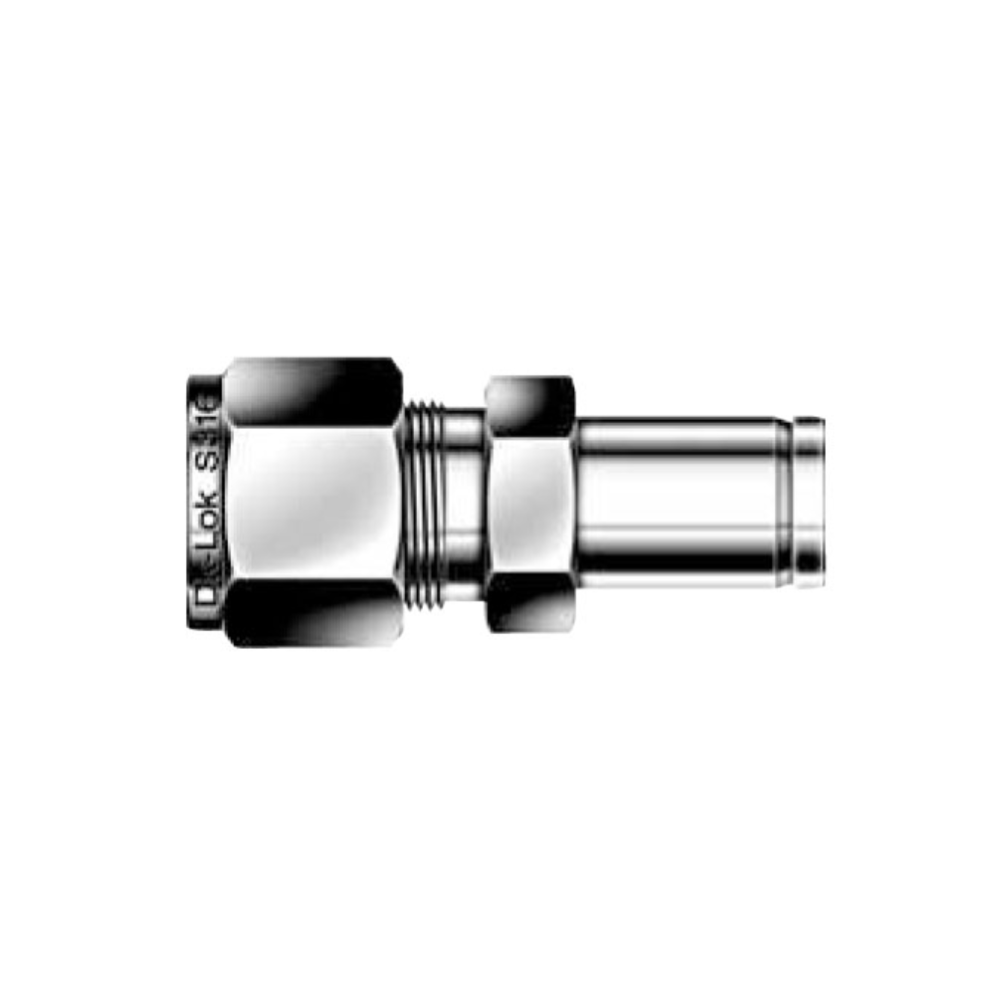

DK-LOK BRASS Reducer DR Series
Tube Stub Connector
Model No.
DRX-X-B

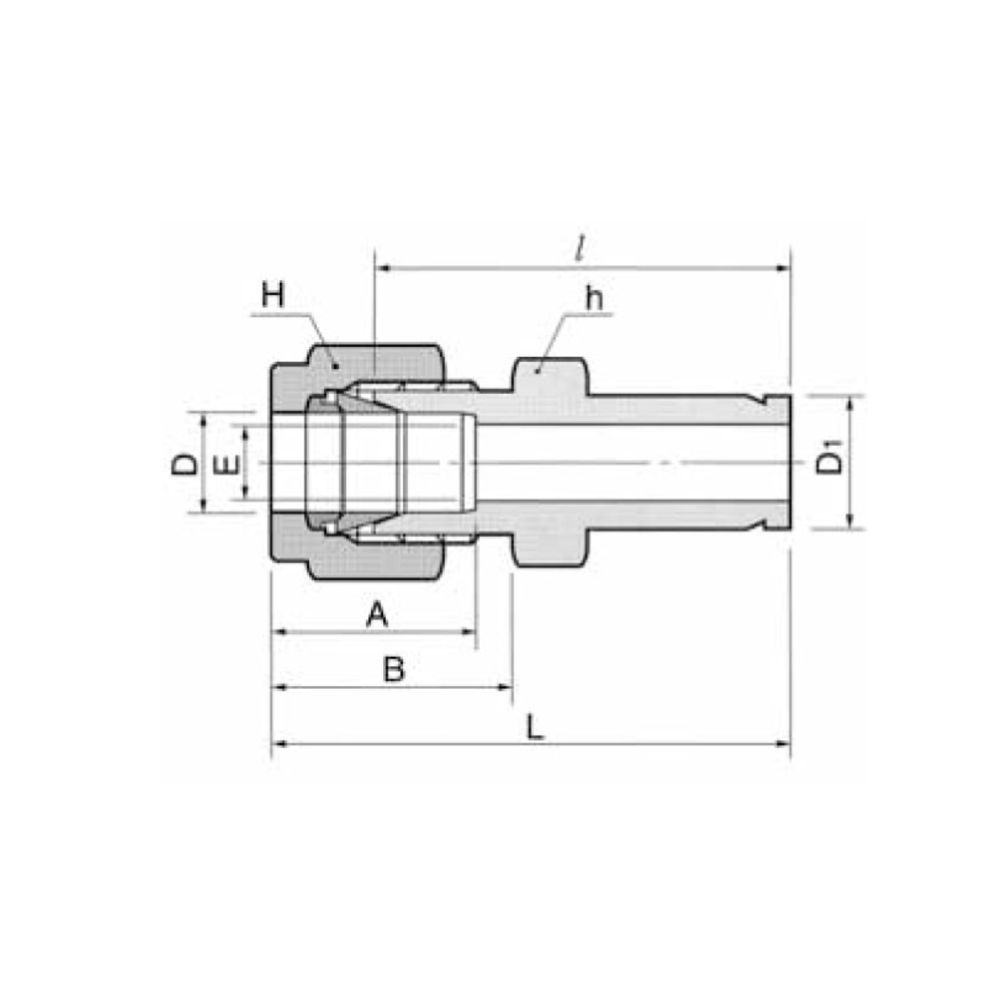

DK-Lok reducer tube fittings incorporate a tube stub end that allows a designer/fabricator the ability to upsize or downsize a tube connection within a tube system in both the single and double ferrule designs.
|

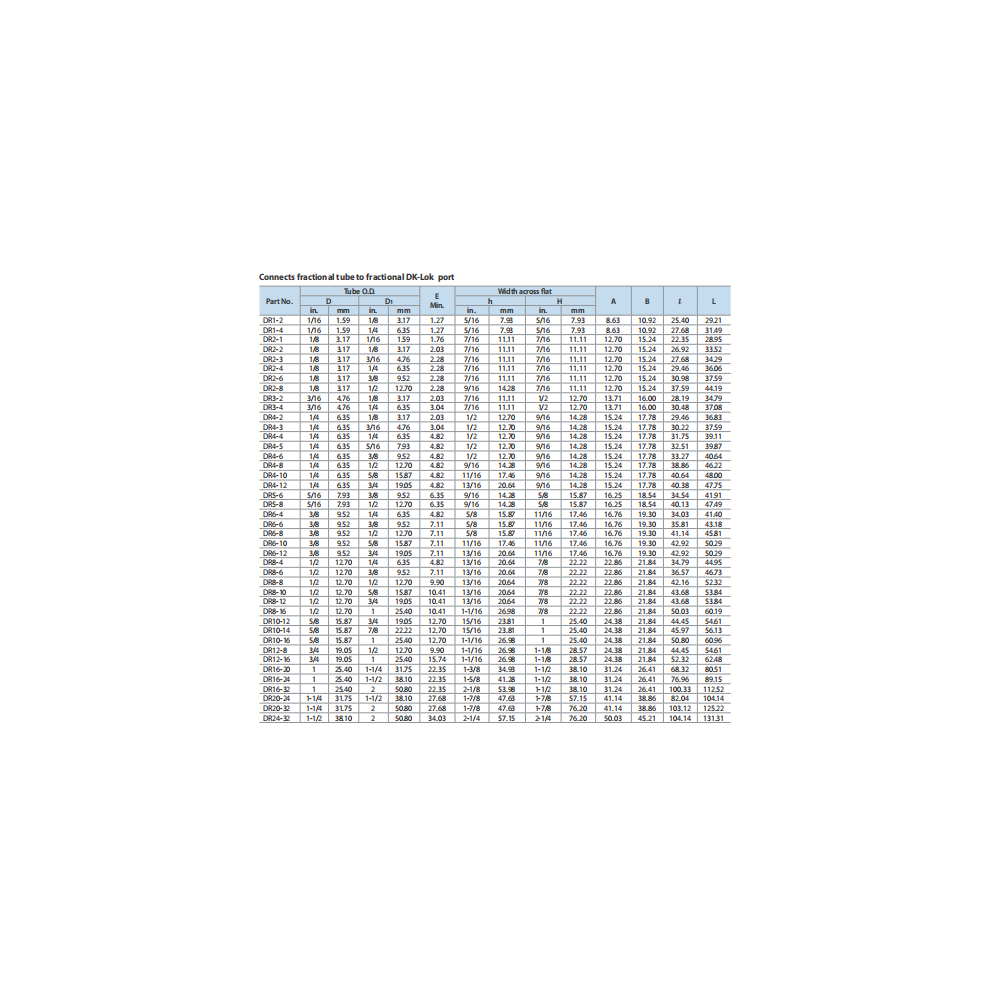

Part No
|
Tube O.D.
|
|
|
|
D (inches)
|
D1 (inches)
|
|
DR1-2 |
1/16 |
1/8 |
|
DR1-4 |
1/16 |
1/4 |
|
DR2-1 |
1/8 |
1/16 |
|
DR2-2 |
1/8 |
1/8 |
|
DR2-3 |
1/8 |
3/16 |
|
DR2-4 |
1/8 |
1/4 |
|
DR2-6 |
1/8 |
3/8 |
|
DR2-8 |
1/8 |
1/2 |
|
DR3-2 |
3/16 |
1/8 |
|
DR3-4 |
3/16 |
1/4 |
|
DR4-2 |
1/4 |
1/8 |
|
DR4-3 |
1/4 |
3/16 |
|
DR4-4 |
1/4 |
1/4 |
|
DR4-5 |
1/4 |
5/16 |
|
DR4-6 |
1/4 |
3/8 |
|
DR4-8 |
1/4 |
1/2 |
|
DR4-10 |
1/4 |
5/8 |
|
DR4-12 |
1/4 |
3/4 |
|
DR5-6 |
5/16 |
3/8 |
|
DR5-8 |
5/16 |
1/2 |
|
DR6-4 |
3/8 |
1/4 |
|
DR6-6 |
3/8 |
3/8 |
|
DR6-8 |
3/8 |
1/2 |
|
DR6-10 |
3/8 |
5/8 |
|
DR6-12 |
3/8 |
3/4 |
|
DR8-4 |
1/2 |
1/4 |
|
DR8-6 |
1/2 |
3/8 |
|
DR8-8 |
1/2 |
1/2 |
|
DR8-10 |
1/2 |
5/8 |
|
DR8-12 |
1/2 |
3/4 |
|
DR8-16 |
1/2 |
1 |
|
DR10-12 |
5/8 |
3/4 |
|
DR10-14 |
5/8 |
7/8 |
|
DR10-16 |
5/8 |
1 |
|
DR12-8 |
3/4 |
1/2 |
|
DR12-16 |
3/4 |
1 |
|
DR16-20 |
1 |
1-1/4 |
|
DR16-24 |
1 |
1-1/2 |
|
DR16-32 |
1 |
2 |
|
DR20-24 |
1-1/4 |
1-1/2 |
|
DR20-32 |
1-1/4 |
2 |
|
DR24-32 |
1-1/2 |
2 |
