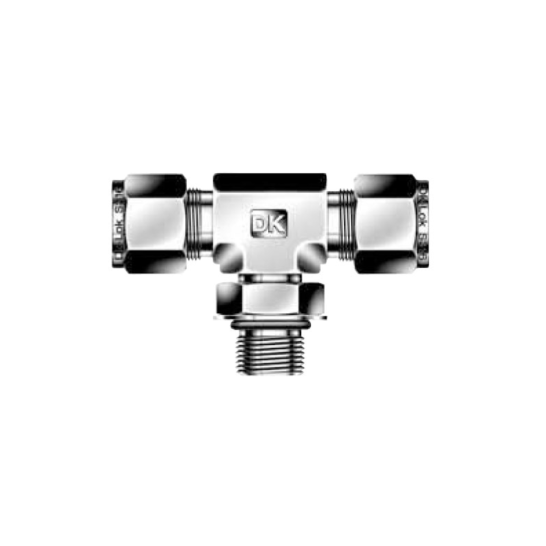

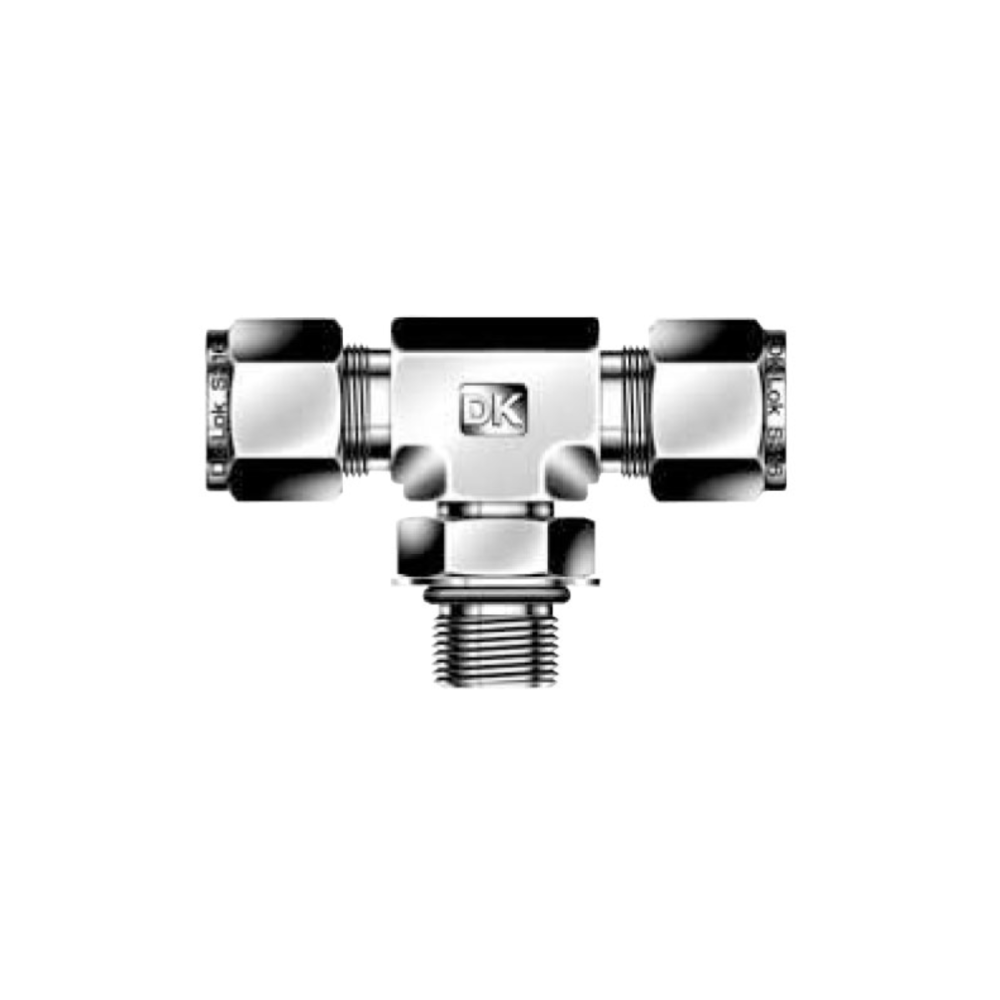

DK-LOK SS316 Positionable SAE Male Branch Tee DTBS-UP Series
Tube to Positionable Straight Thread
Model No.
DTBSX-XUP-SS
Tube to position-able fittings are designed to connect individual tube lines to female straight threaded ports requiring an elastomer seal at the face of the female threaded port allowing for the fitting to be properly aligned for ease of installation with the tube line; in both single ferrule and double ferrule designs.
|

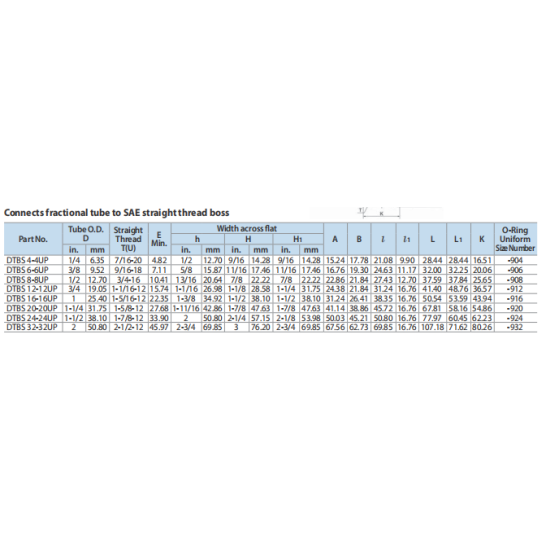

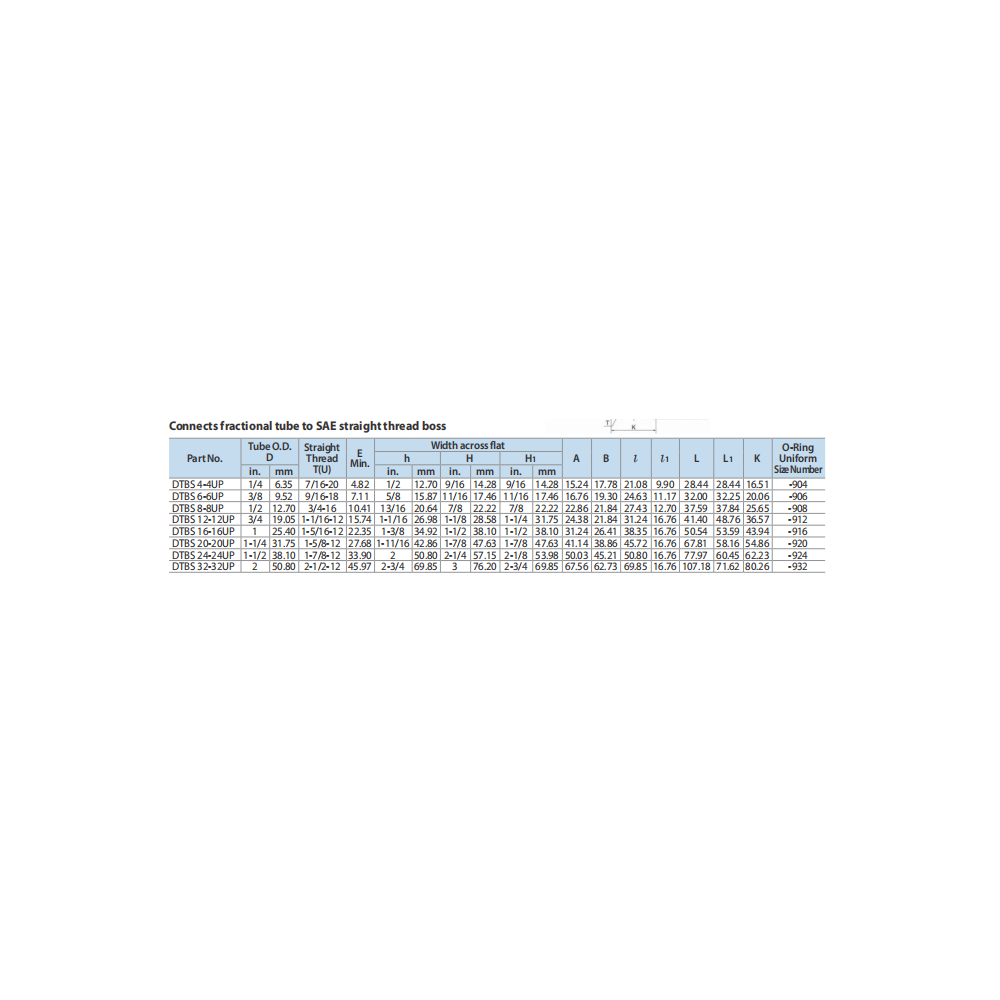

Part No
|
Tube O.D.
D (inches)
|
Straight Thread
T (U)
|
|
DTBS4-4UP |
1/4 |
7/16-20 |
|
DTBS6-6UP |
3/8 |
9/16-18 |
|
DTBS8-8UP |
1/2 |
3/4-16 |
|
DTBS12-12UP |
3/4 |
1-1/16-12 |
|
DTBS16-16UP |
1 |
1-5/16-12 |
|
DTBS20-20UP |
1-1/4 |
1-5/8-12 |
|
DTBS24-24UP |
1-1/2 |
1-7/8-12 |
|
DTBS32-32UP |
2 |
2-1/2-12 |
