Brand:

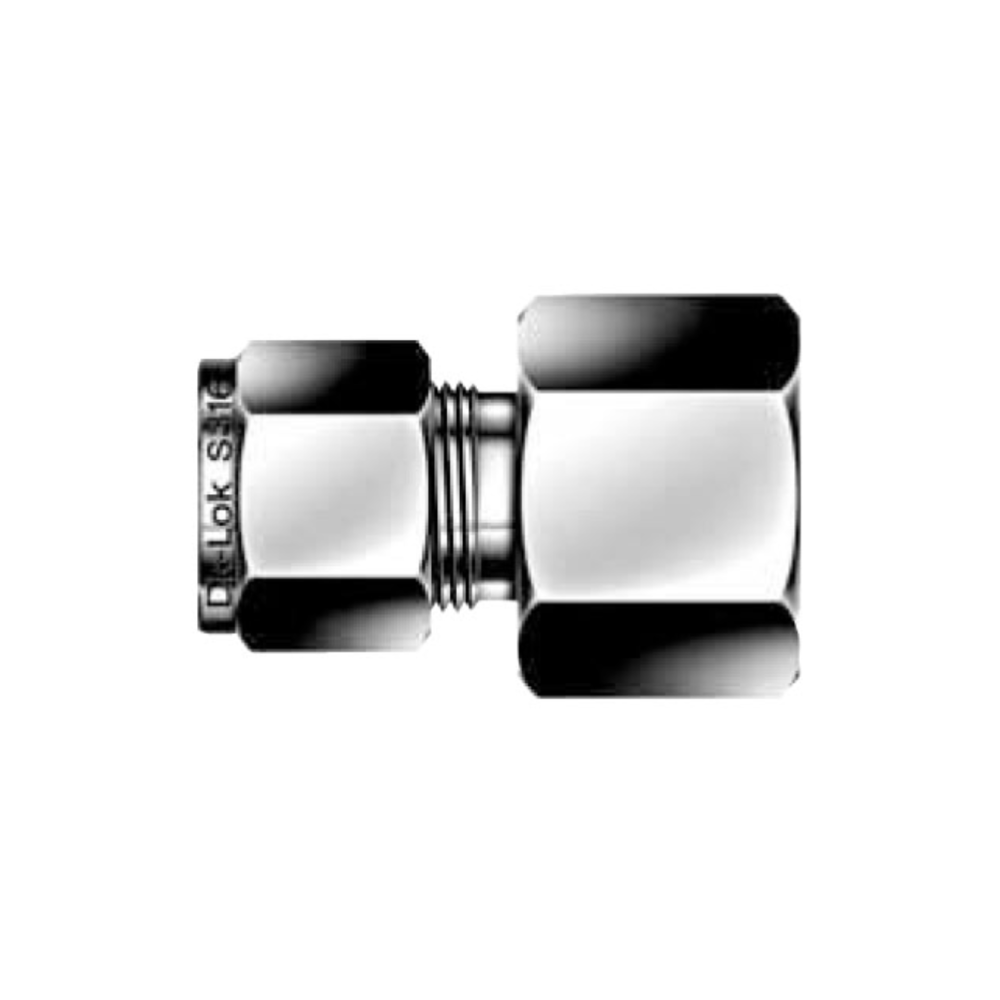

DK-LOK BRASS Female Connector DCF-R Metric Series
Tube to Female Pipe
Model No.
DCFXM-XR-B

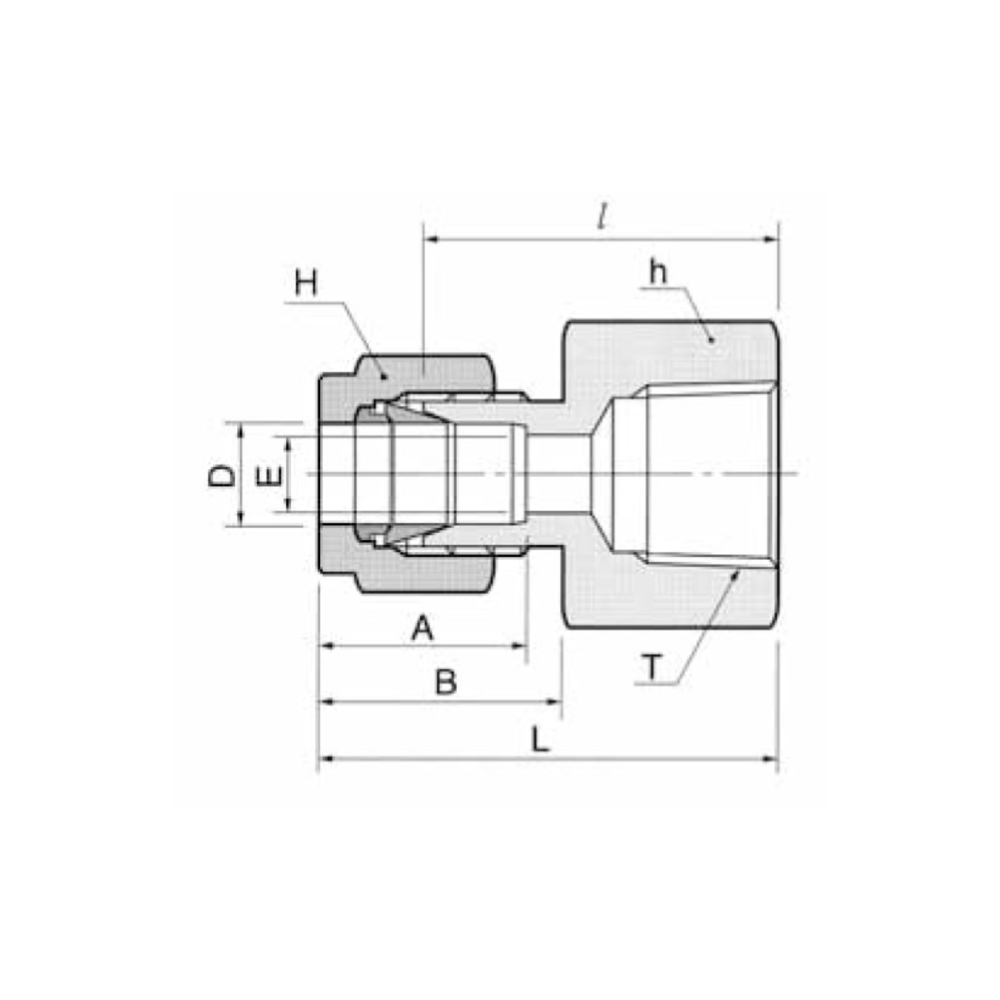

DK-Lok DCF-R female connectors are designed to connect individual fractional or metric tube lines to a male British Standard Pipe Tapered Thread (BSPT) in both single ferrule and double ferrule designs.
|

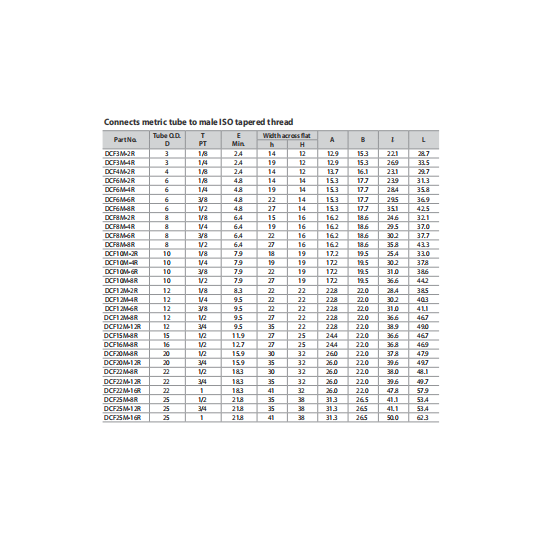

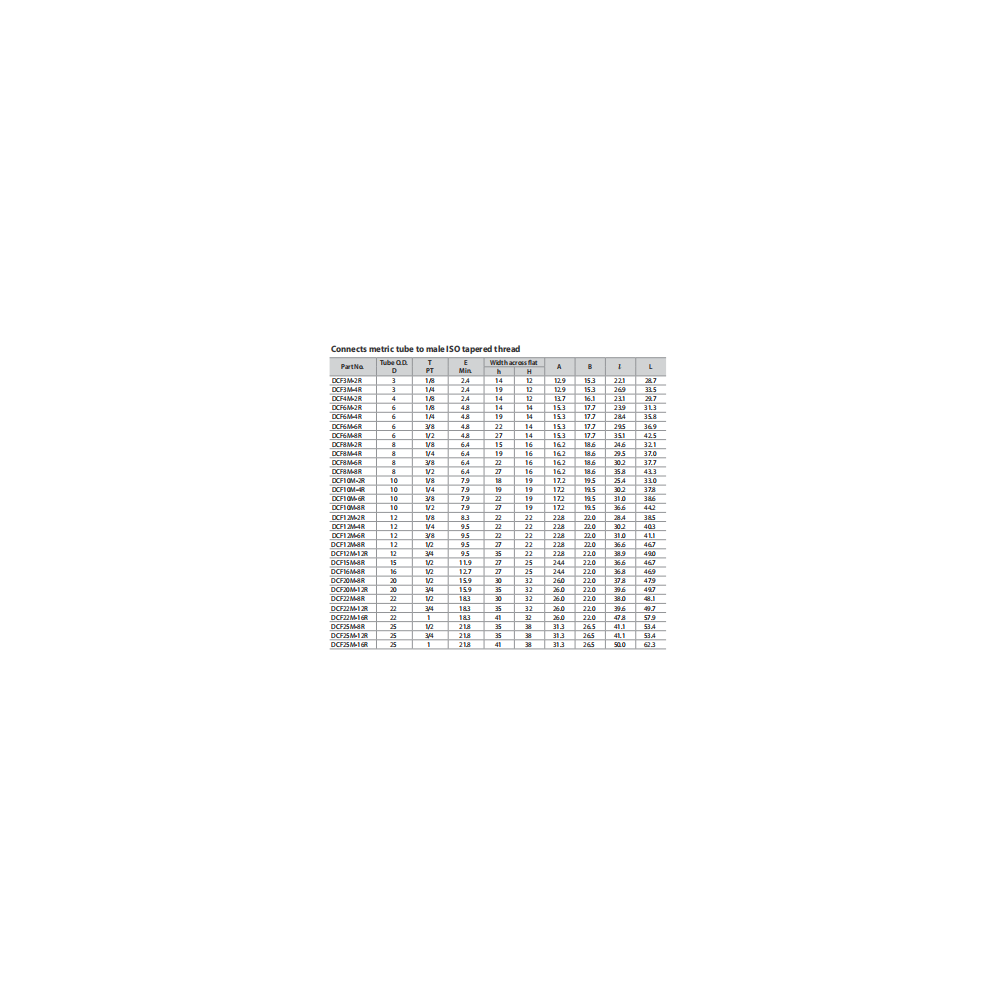

Part No
|
Tube O.D.
D (mm)
|
T
PT
|
|
DCF3M-2R |
3 |
1/8 |
|
DCF3M-4R |
3 |
1/4 |
|
DCF4M-2R |
4 |
1/8 |
|
DCF6M-2R |
6 |
1/8 |
|
DCF6M-4R |
6 |
1/4 |
|
DCF6M-6R |
6 |
3/8 |
|
DCF6M-8R |
6 |
1/2 |
|
DCF8M-2R |
8 |
1/8 |
|
DCF8M-4R |
8 |
1/4 |
|
DCF8M-6R |
8 |
3/8 |
|
DCF8M-8R |
8 |
1/2 |
|
DCF10M-2R |
10 |
1/8 |
|
DCF10M-4R |
10 |
1/4 |
|
DCF10M-6R |
10 |
3/8 |
|
DCF10M-8R |
10 |
1/2 |
|
DCF12M-2R |
12 |
1/8 |
|
DCF12M-4R |
12 |
1/4 |
|
DCF12M-6R |
12 |
3/8 |
|
DCF12M-8R |
12 |
1/2 |
|
DCF12M-12R |
12 |
3/4 |
|
DCF15M-8R |
15 |
1/2 |
|
DCF16M-8R |
16 |
1/2 |
|
DCF20M-8R |
20 |
1/2 |
|
DCF20M-12R |
20 |
3/4 |
|
DCF22M-8R |
22 |
1/2 |
|
DCF22M-12R |
22 |
3/4 |
|
DCF22M-16R |
22 |
1 |
|
DCF25M-8R |
25 |
1/2 |
|
DCF25M-12R |
25 |
3/4 |
|
DCF25M-16R |
25 |
1 |
