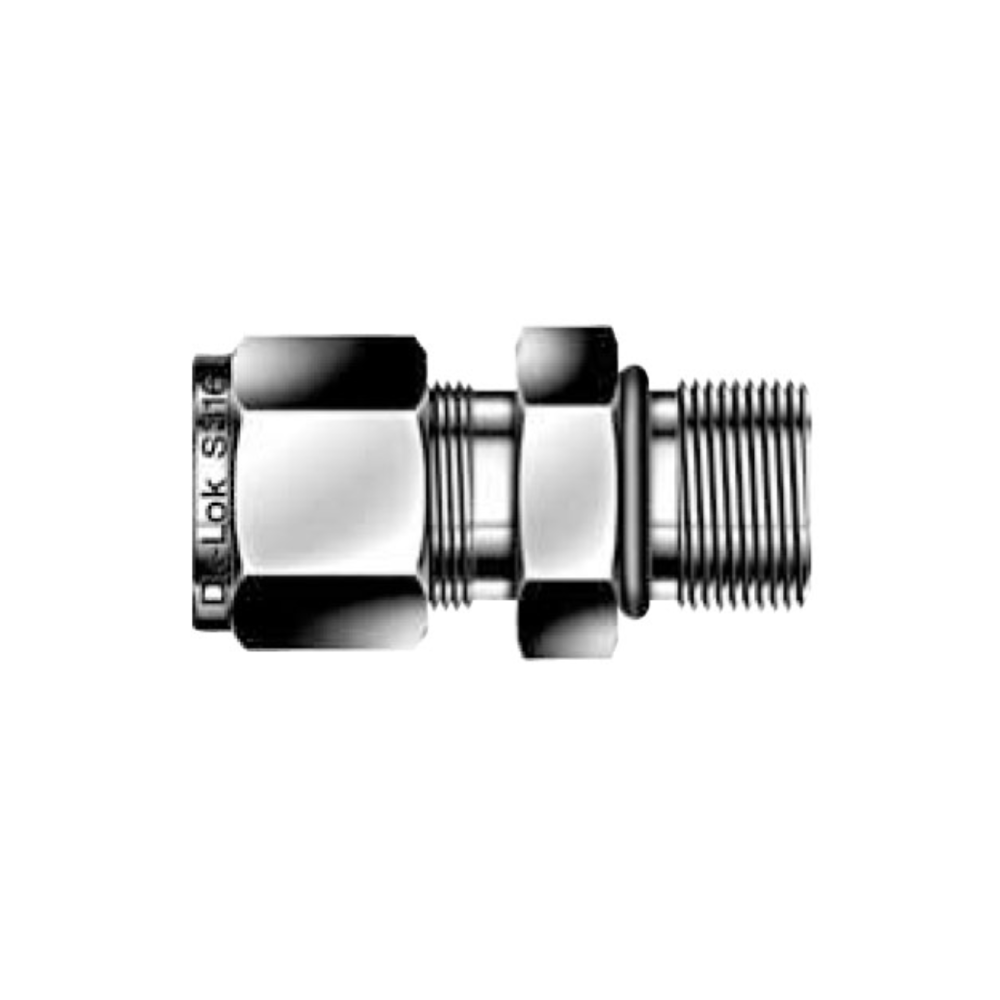

DK-LOK SS316 Non-Positionable SAE Male Connector DMCS-U Series
Tube to none-Positionable O-Seal

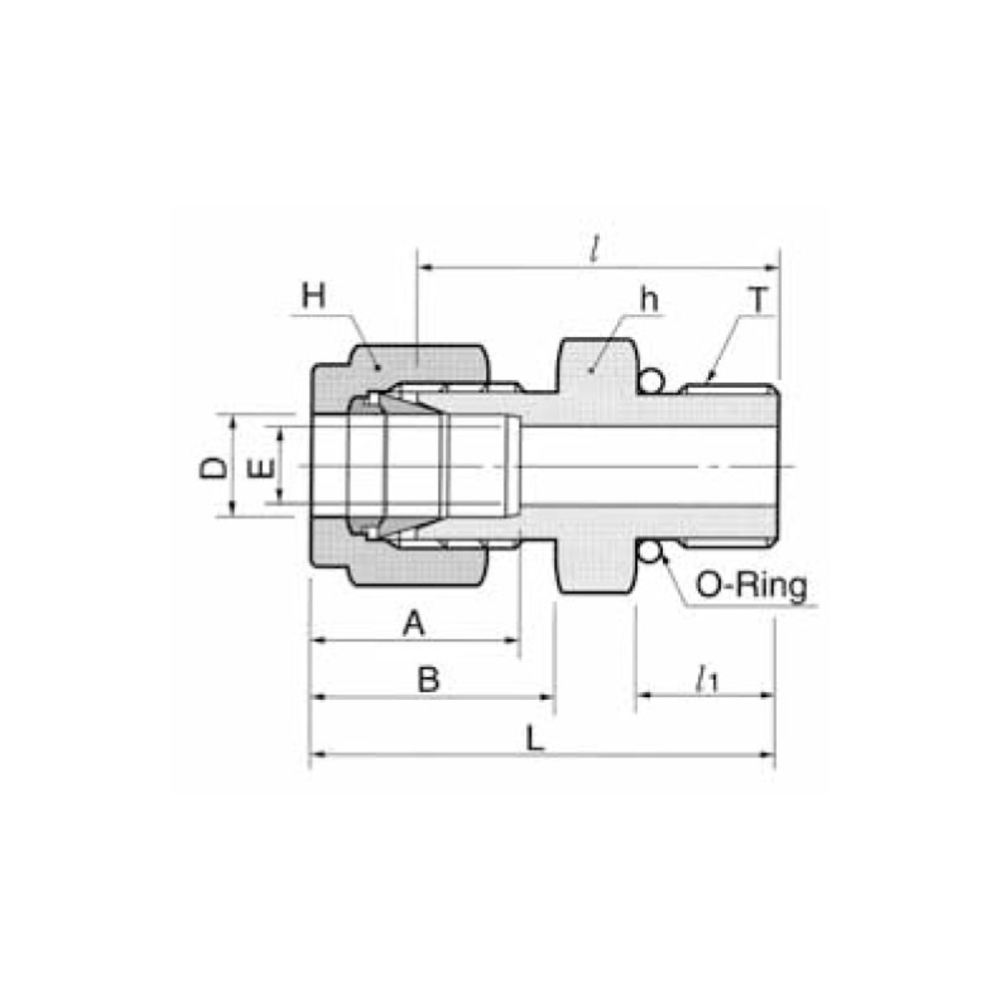

Tube to non-positionable connectors are designed to connect individual tube lines to female threaded ports requiring an elastomer seal at the face of the female threaded port; in both single ferrule and double ferrule designs.
|

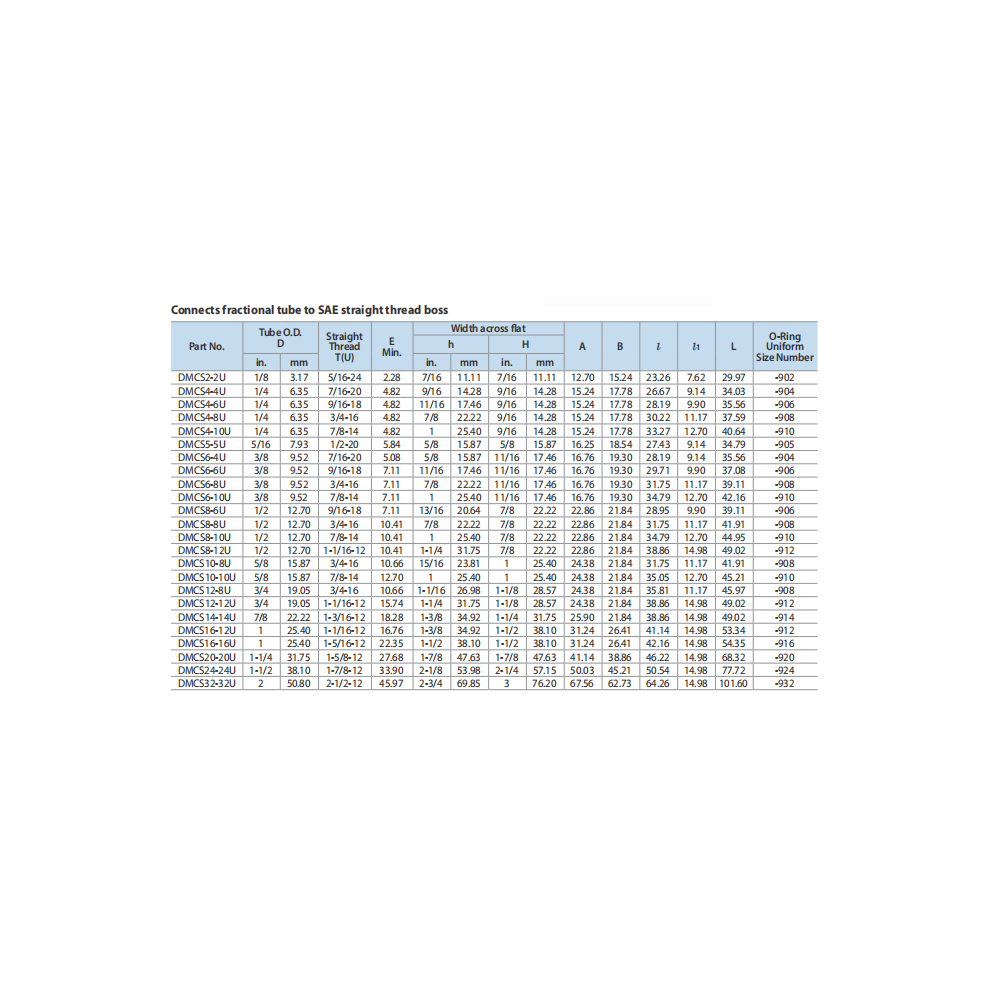

Part No
|
Tube O.D.
D (inches)
|
Straight Thread
T (U)
|
|
DMCS2-2U |
1/8 |
5/16-24 |
|
DMCS4-4U |
1/4 |
7/16-20 |
|
DMCS4-6U |
1/4 |
9/16-18 |
|
DMCS4-8U |
1/4 |
3/4-16 |
|
DMCS4-10U |
1/4 |
7/8-14 |
|
DMCS5-5U |
5/16 |
1/2-20 |
|
DMCS6-4U |
3/8 |
7/16-20 |
|
DMCS6-6U |
3/8 |
9/16-18 |
|
DMCS6-8U |
3/8 |
3/4-16 |
|
DMCS6-10U |
3/8 |
7/8-14 |
|
DMCS8-6U |
1/2 |
9/16-18 |
|
DMCS8-8U |
1/2 |
3/4-16 |
|
DMCS8-10U |
1/2 |
7/8-14 |
|
DMCS8-12U |
1/2 |
1-1/16-12 |
|
DMCS10-8U |
5/8 |
3/4-16 |
|
DMCS10-10U |
5/8 |
7/8-14 |
|
DMCS12-8U |
3/4 |
3/4-16 |
|
DMCS12-12U |
3/4 |
1-1/16-12 |
|
DMCS14-14U |
7/8 |
1-3/16-12 |
|
DMCS16-12U |
1 |
1-1/16-12 |
|
DMCS16-16U |
1 |
1-5/16-12 |
|
DMCS20-20U |
1-1/4 |
1-5/8-12 |
|
DMCS24-24U |
1-1/2 |
1-7/8-12 |
|
DMCS32-32U |
2 |
2-1/2-12 |
