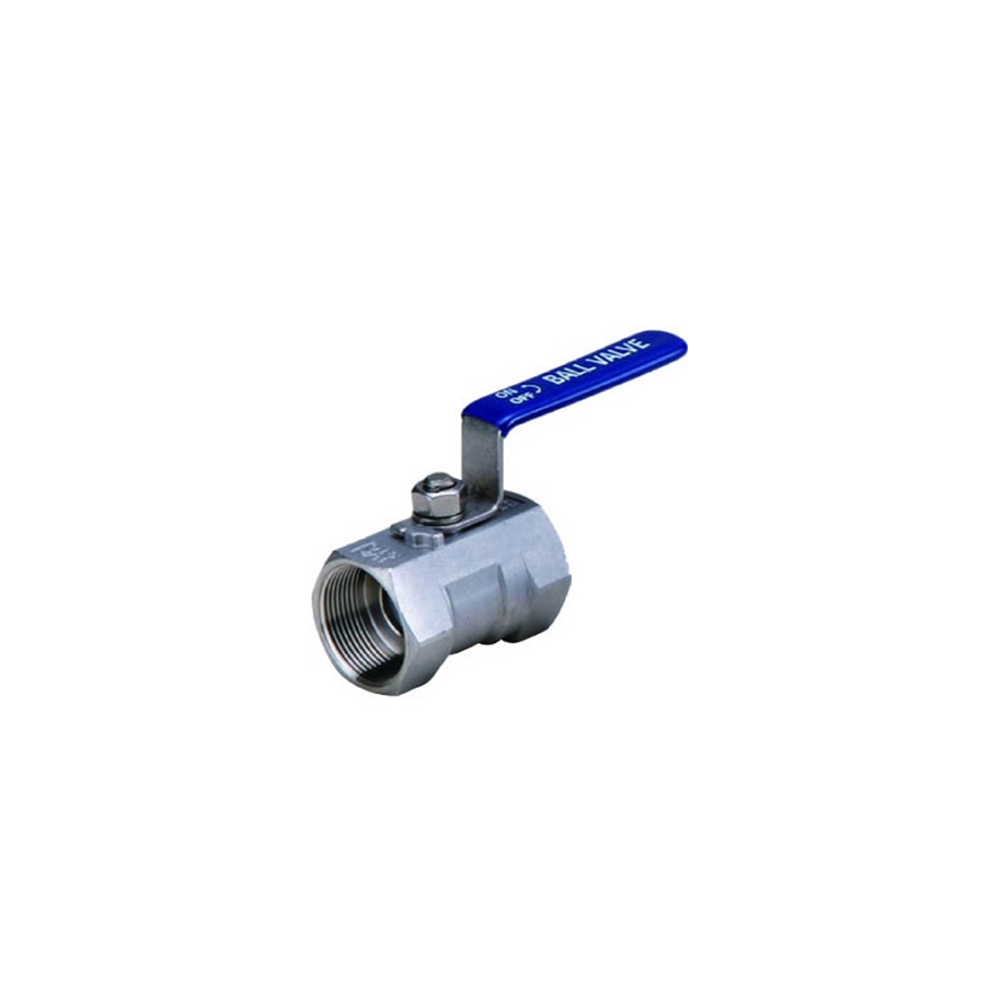

1pc Stainless Steel Ball Valve 1000WOG BSPT
1pc ball valve is made out of one body piece which means the valve cannot be taken apart.
Model No.
BV-TBV01(1PC)B1
1pc ball valve is made out of one body piece which means the valve cannot be taken apart.
Material stainless steel AISI-316 (EN 10213-4 1.4408) and (ASTM-A351-CF8M).
Available in NPT or BSPT.
Pipe thread in accordance with ANSI B2.1, BS 21 1973, DIN 259/2999, ISO 228.
Blow-out proof stem/Reduce bore.
Investment casting body and inscrewed.
1000psi wog (69bar).
size available from 1/4" to 2".
