Brand:

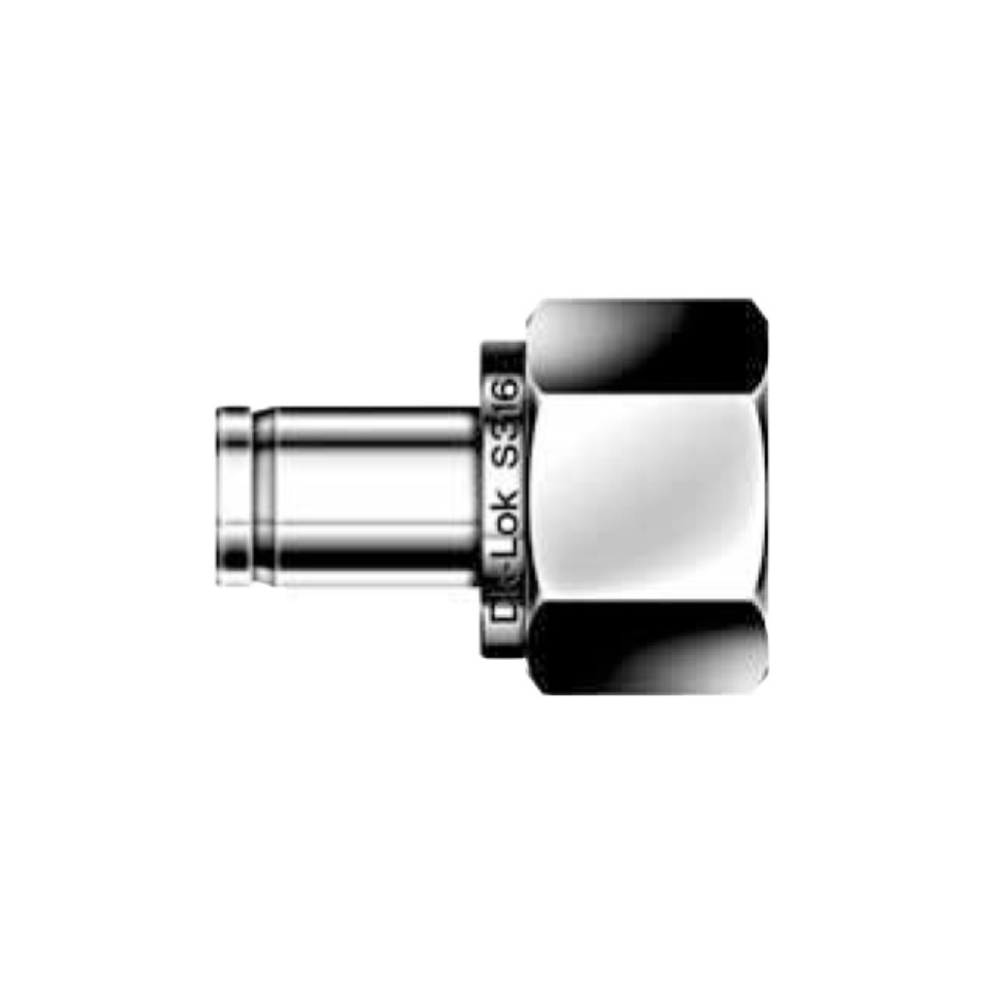

DK-LOK BRASS Female Adapter DAF-N Metric Series
Tube Stub Connector
Model No.
DAFXM-XN-B
DK-Lok DAF-N adapter tube fittings provide a connection to a male American Standard Pipe Thread leaving a tube stub connection typically to address alignment issues.
|

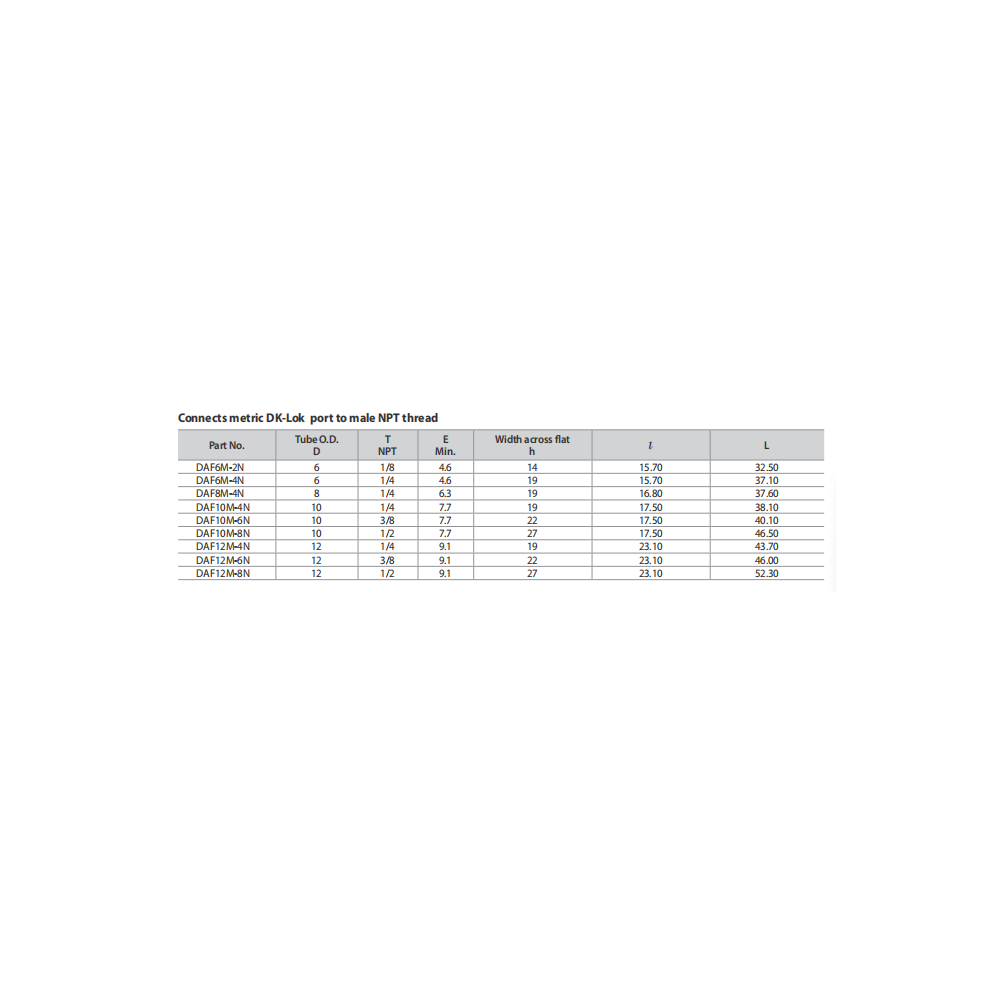

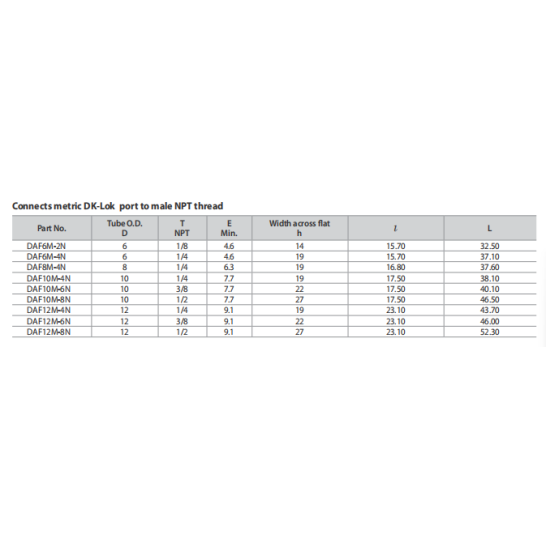

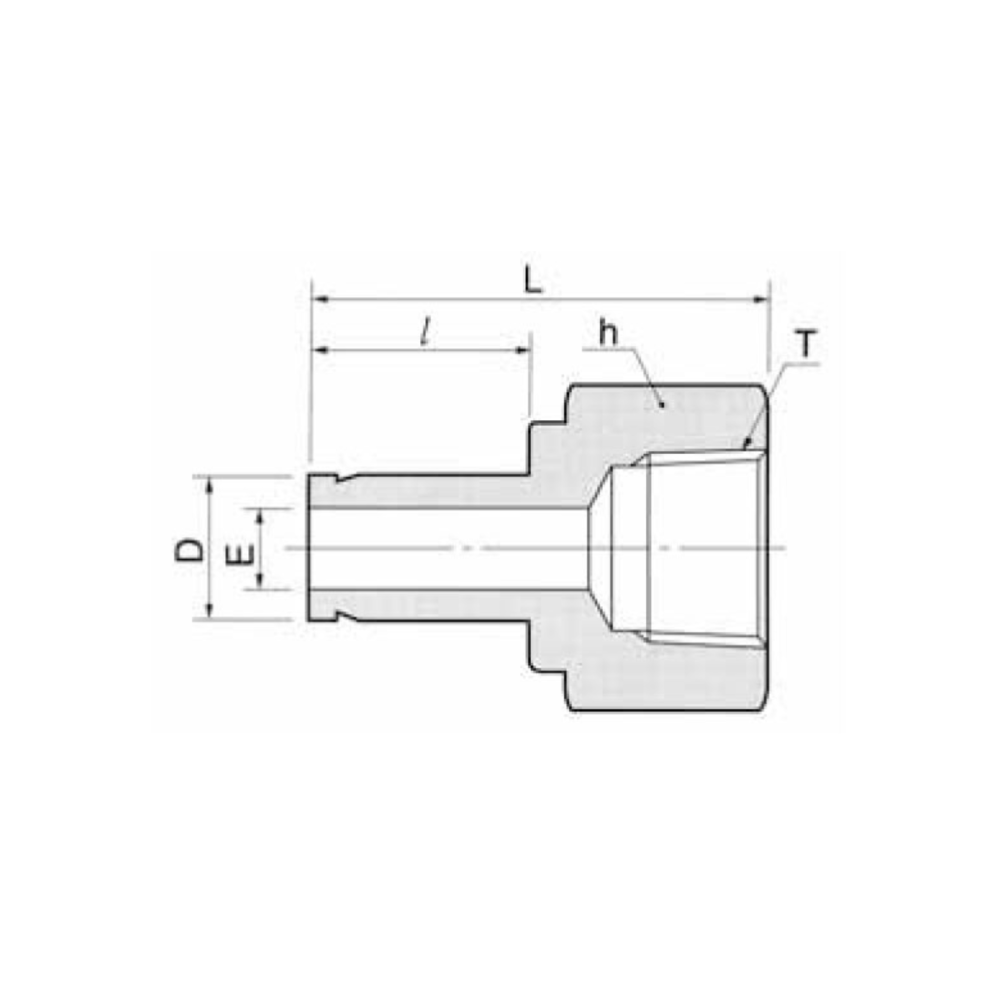

Part No
|
Tube O.D.
D (mm)
|
T
PT
|
|
DAF6M-2N |
6 |
1/8 |
|
DAF6M-4N |
6 |
1/4 |
|
DAF8M-4N |
8 |
1/4 |
|
DAF10M-4N |
10 |
1/4 |
|
DAF10M-6N |
10 |
3/8 |
|
DAF10M-8N |
10 |
1/2 |
|
DAF12M-4N |
12 |
1/4 |
|
DAF12M-6N |
12 |
3/8 |
|
DAF12M-8N |
12 |
1/2 |
