Brand:

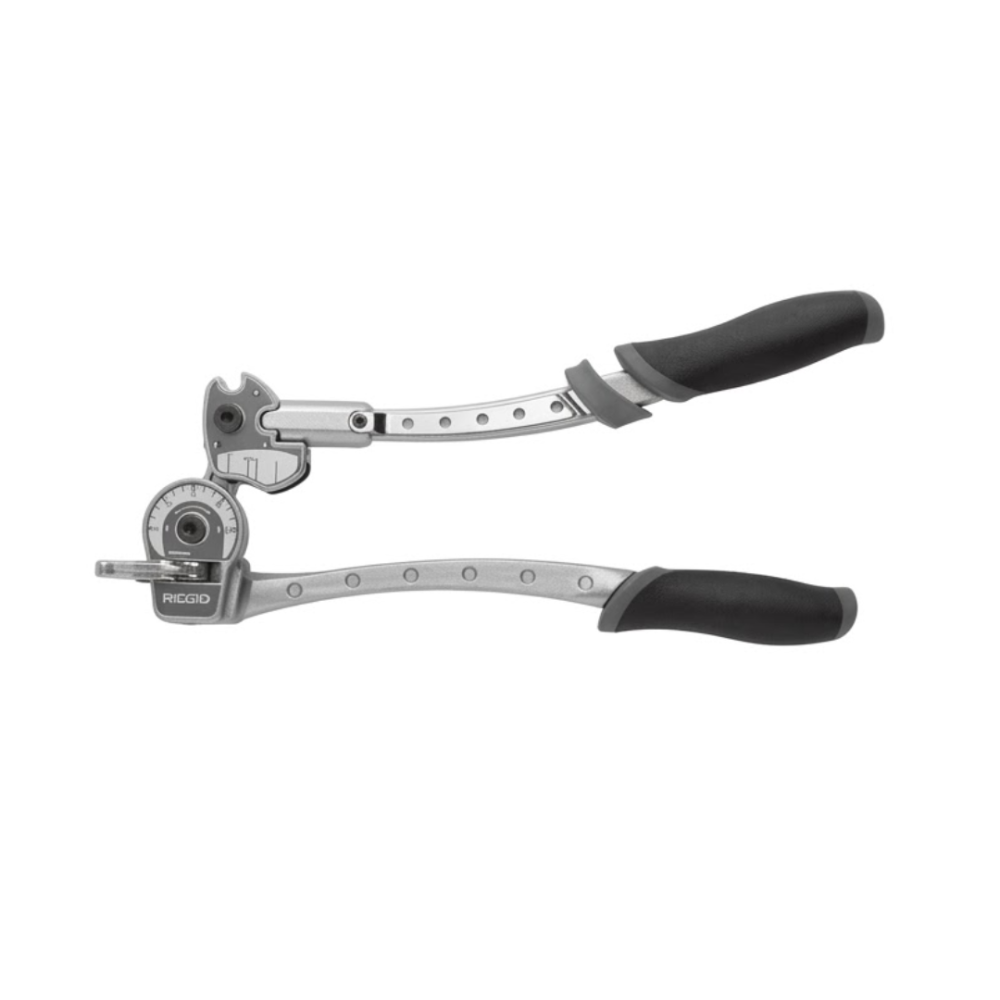

DK-LOK Hand Tube Bender DHTB Series
Tools
Model No.
DHTB-X
Technical Information
l For 1/4” to 1/2” and 6mm to 12mm O.D. tubing.
l Accurate and tight bends up to 180° in stainless steel and other tough metals.
l Rollers reduce friction and bending effort; eliminate scoring of tubing.
l Vise lug for mounting in vise.
l Durable nickel finish.
|

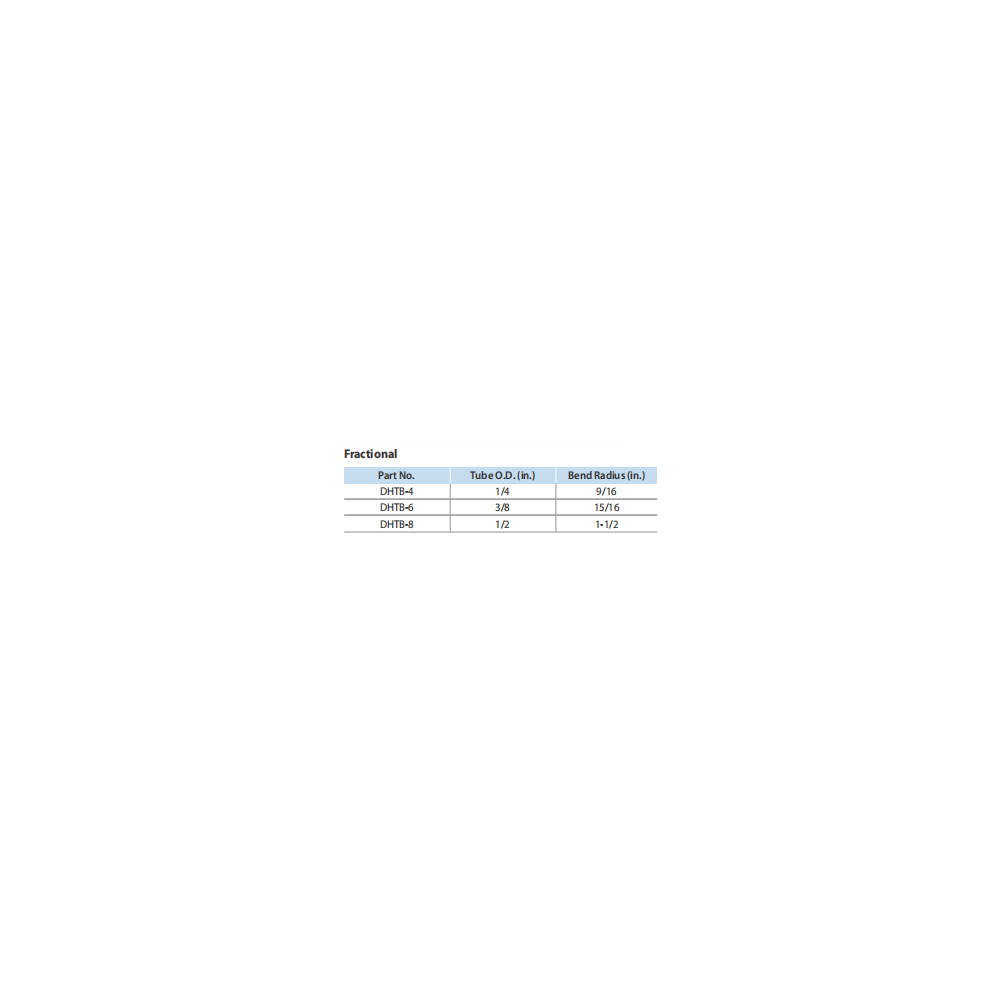

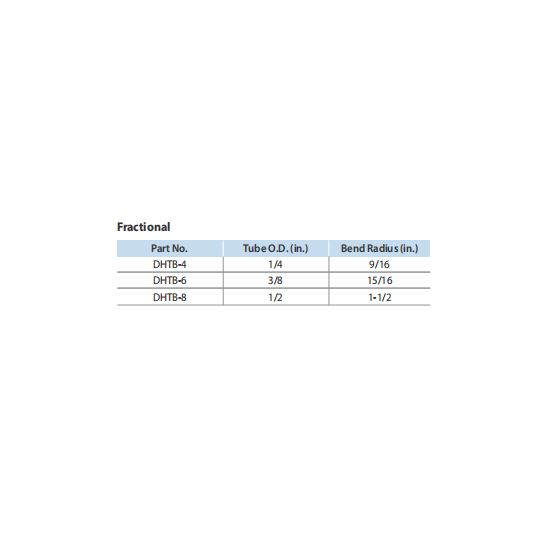

Part Number
|
Tube O.D. (in.)
|
Bend Radius (in.)
|
|
DHTB-4 |
1/4 |
9/16 |
|
DHTB-6 |
3/8 |
15/16 |
|
DHTB-8 |
1/2 |
1-1/2 |
