Brand:

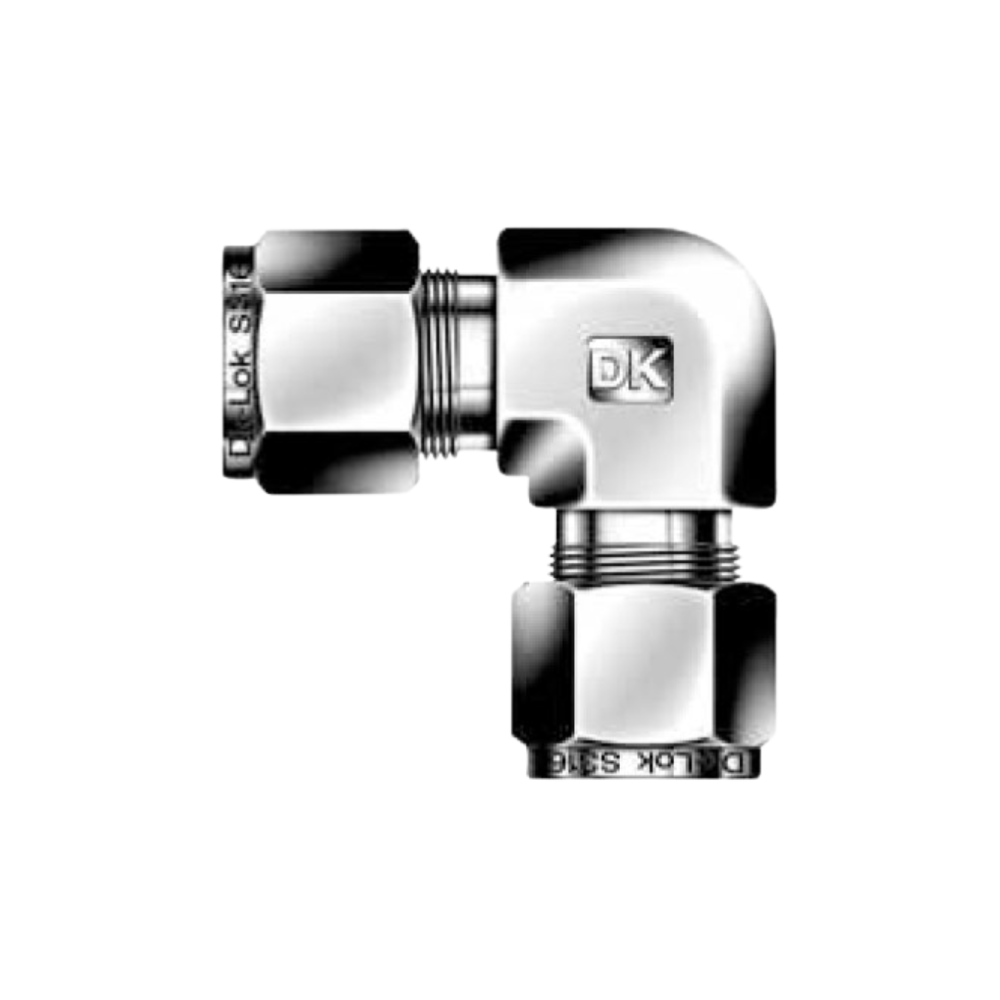

DK-LOK BRASS Union Elbow DL Series
Tube to Tube Union
Model No.
DL-X-B
DK-Lok union elbows are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

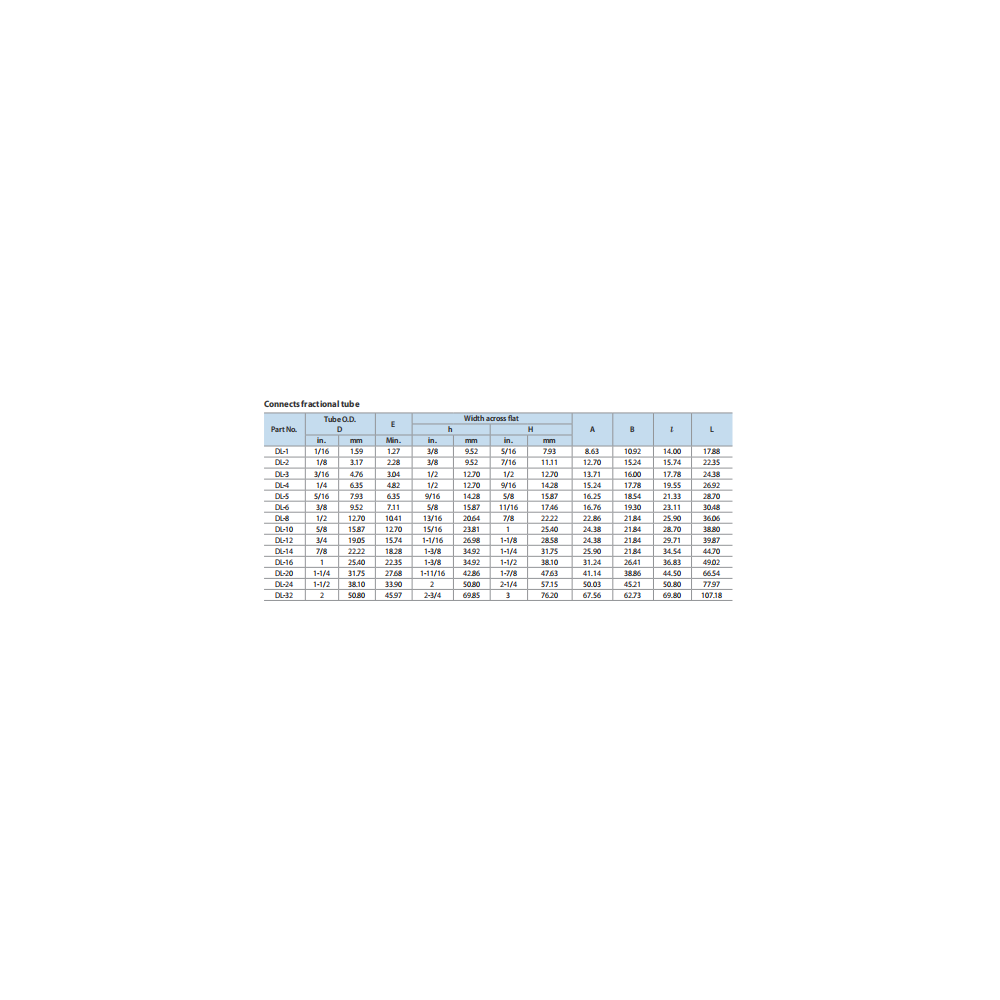

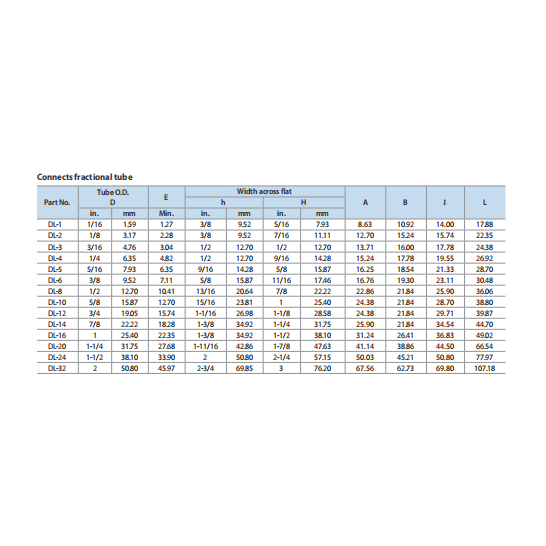

Part No |

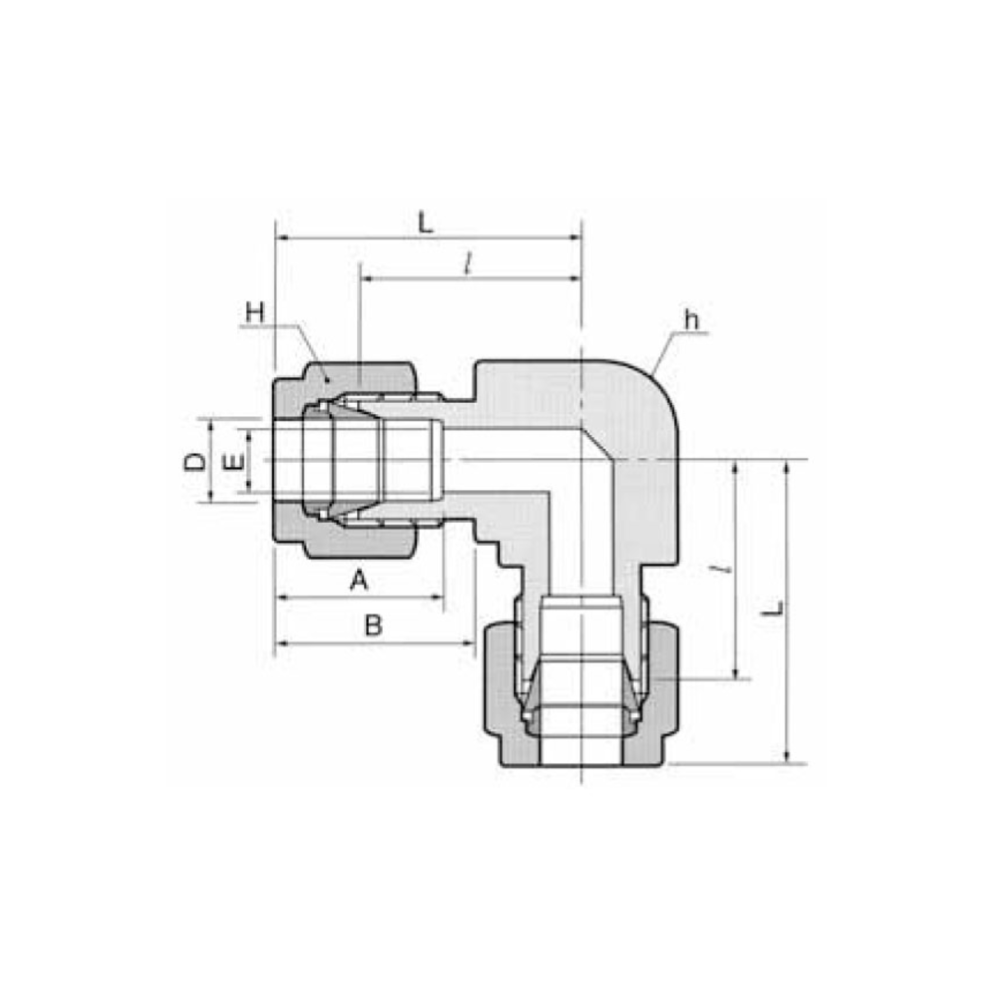

Tube O.D. D (inches) |
|
DL-1 |
1/16 |
|
DL-2 |
1/8 |
|
DL-3 |
3/16 |
|
DL-4 |
1/4 |
|
DL-5 |
5/16 |
|
DL-6 |
3/8 |
|
DL-8 |
1/2 |
|
DL-10 |
5/8 |
|
DL-12 |
3/4 |
|
DL-14 |
7/8 |
|
DL-16 |
1 |
|
DL-20 |
1-1/4 |
|
DL-24 |
1-1/2 |
|
DL-32 |
2 |
