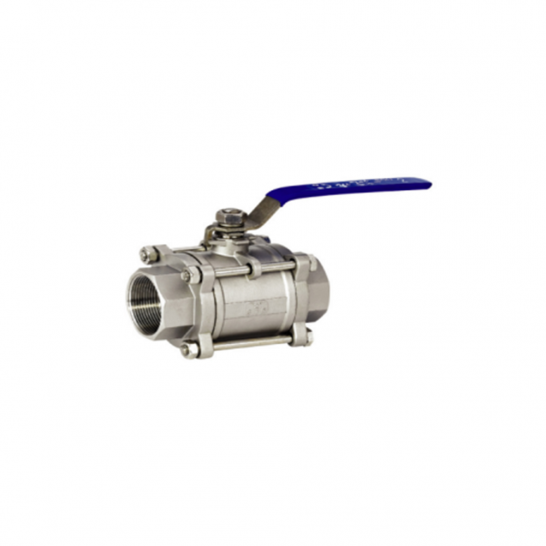

3pc Stainless Steel Ball Valve 1000WOG BSPT

3pc ball valve is made out of one main body and two pipe connectors of which the two pipe connectors are usually threaded or welded to a pipe.
Read moreShow less
Model No.
BV-TBV19(3PC)B1
TYPE
FITTINGS / VALVES
  • 1/2"
  • 1/4"
  • 3/4"
  • 3/8"
  • 1"
  • 1-1/2"
  • 1-1/4"
  • 2"
Description
3pc ball valve is made out of one main body and two pipe connectors of which the two pipe connectors are usually threaded or welded to a pipe.
The construction of the 3pc ball valve allows the main body to be removed for repairs without removing the 2 pipe connectors.
Material stainless steel AISI-316 (EN 10213-4 1.4408) and (ASTM-A351-CF8M).
Available in NPT or BSPT.
Pipe thread in accordance with ANSI B2.1, BS 21 1973, DIN 259/2999, ISO 228.
Blow-out proof stem/full port.
Investment casting body and cap.
Full ball 1000psi wog (69bar).
size available from 1/4" to 2".
Read moreShow less
Specifications
BV-TBV19(3PC)B1

Data sheet

Material
Stainless Steel AISI-316
Type
3pc
Size Available
1/4" to 2"
Pressure
1000PSI WOG (69bar)
Thread Available
BSPT or NPT
