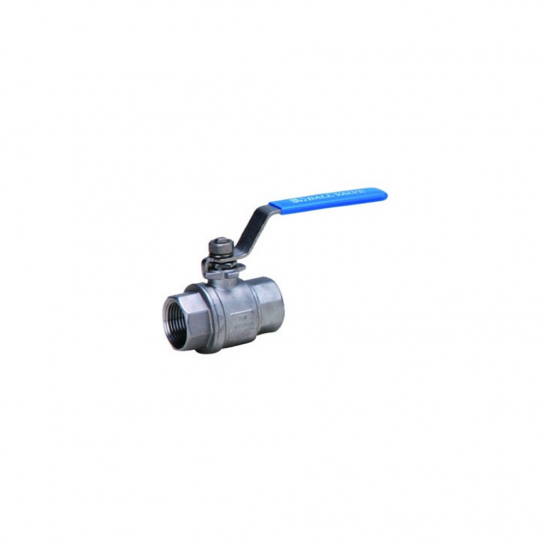

2pc Stainless Steel Ball Valve 1000WOG BSPT
2pc ball valve is made out of two pieces that has one end connection and the body as first piece while the second piece fits with the first piece to hold the structure in place and includes a 2nd end connection at the second piece.
Read moreShow less
Model No.
BV-TBV09(2PC)B1
2pc ball valve is made out of two pieces that has one end connection and the body as first piece while the second piece fits with the first piece to hold the structure in place and includes a 2nd end connection at the second piece.
While it is impossible to repair 1pc ball valve, 2pc ball valve allows limited repair & maintenance.
Material stainless steel AISI-316 (EN 10213-4 1.4408) and (ASTM-A351-CF8M).
Available in NPT or BSPT.
Pipe thread in accordance with ANSI B2.1, BS 21 1973, DIN 259/2999, ISO 228.
Lug body.
Blow-out proof stem/full port.
Investment casting body and cap.
Full ball 1000psi wog (69bar).
size available from 1/4" to 2".
Read moreShow less
While it is impossible to repair 1pc ball valve, 2pc ball valve allows limited repair & maintenance.
Material stainless steel AISI-316 (EN 10213-4 1.4408) and (ASTM-A351-CF8M).
Available in NPT or BSPT.
Pipe thread in accordance with ANSI B2.1, BS 21 1973, DIN 259/2999, ISO 228.
Lug body.
Blow-out proof stem/full port.
Investment casting body and cap.
Full ball 1000psi wog (69bar).
size available from 1/4" to 2".
