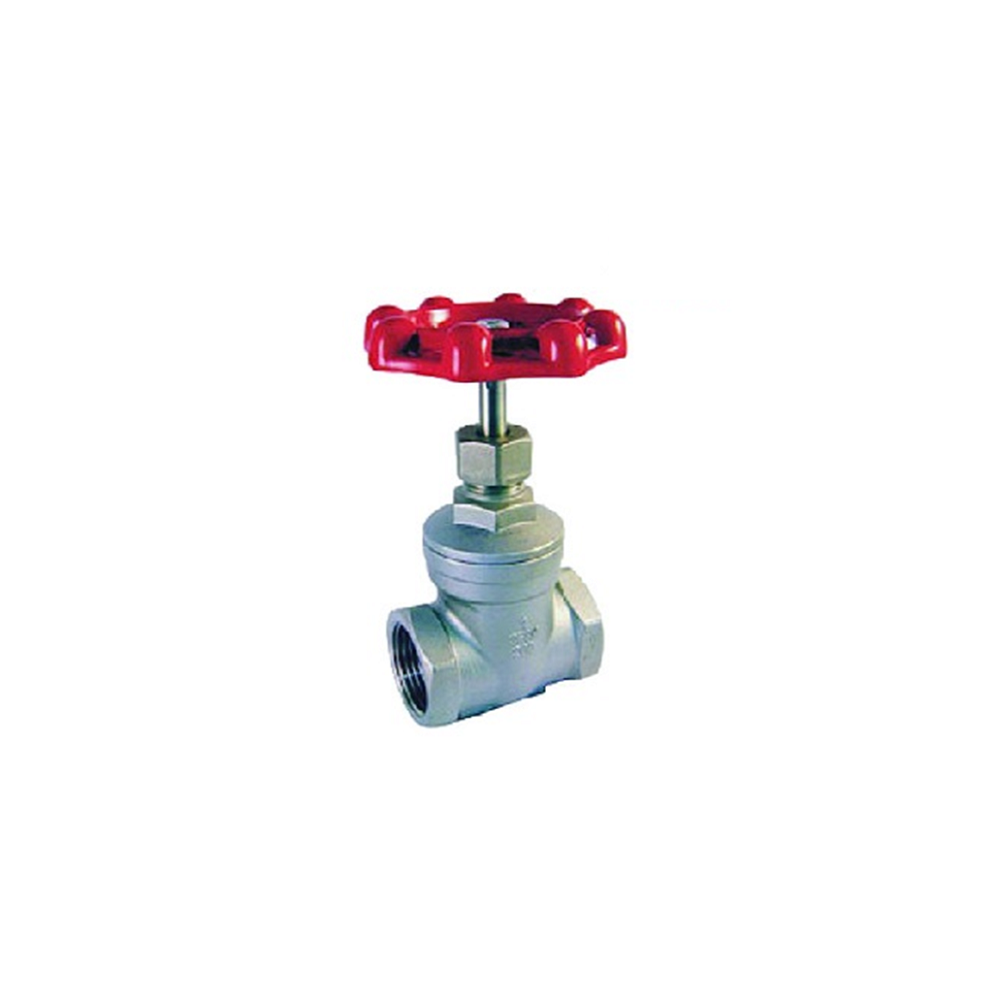

Class 200 Stainless Steel Gate Valve BSPT

Gate valves are used to either completely shut off flow within the pipeline or provide full flow.
There is no change in direction for gate valves.
Gate valve allows full flow by lifting the barrier out of the flow path within the pipeline.
Gate valves are energy & cost efficient.
Material stainless steel ASTM A351-CF8M.
Full port pressure temperature rating 200psi 350deg F. S.P.
Thread ends conforms to ANSI B2.1, BS21, DIN259/2999, ISO 228 stanadards.
Stainless steel class 200 inside screw & screwed bonnet, wedge disc, integral seat, non-rising stem and hand wheel.
size available from 1/2" to 2".
