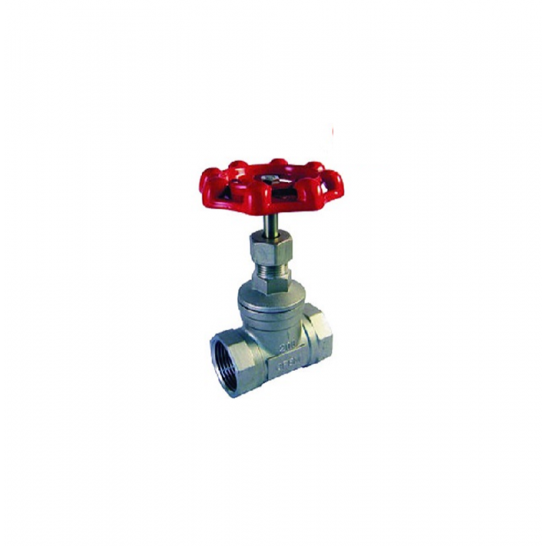

Class 200 Stainless Steel Globe Valve BSPT
Globe valves are control valves that should be used in processes where huge changes in pressure will not cause an issue to the application.
Read moreShow less
Model No.
BV-GOV01
Globe valves are control valves that should be used in processes where huge changes in pressure will not cause an issue to the application.
Globe valve is unidirectional and its discs moves parallel to the media flow unlike gate valve where its mechanism works at a right angle.
Globe valve works in such mechanism of Fully Open to Throttling to Full Closed
Material stainless steel ASTM A351-CF8M.
Full port pressure temperature rating 200psi 350deg F. S.P.
Thread ends conforms to ANSI B2.1, BS21, DIN259/2999, ISO 228 standards.
Stainless steel class 200 inside screw & screwed bonnet, wedge disc, integral seat, non-rising stem and hand wheel.
size available from 1/2" to 2".
Read moreShow less
Globe valve is unidirectional and its discs moves parallel to the media flow unlike gate valve where its mechanism works at a right angle.
Globe valve works in such mechanism of Fully Open to Throttling to Full Closed
Material stainless steel ASTM A351-CF8M.
Full port pressure temperature rating 200psi 350deg F. S.P.
Thread ends conforms to ANSI B2.1, BS21, DIN259/2999, ISO 228 standards.
Stainless steel class 200 inside screw & screwed bonnet, wedge disc, integral seat, non-rising stem and hand wheel.
size available from 1/2" to 2".
