DK-LOK
Compact Check Valves
Brand:

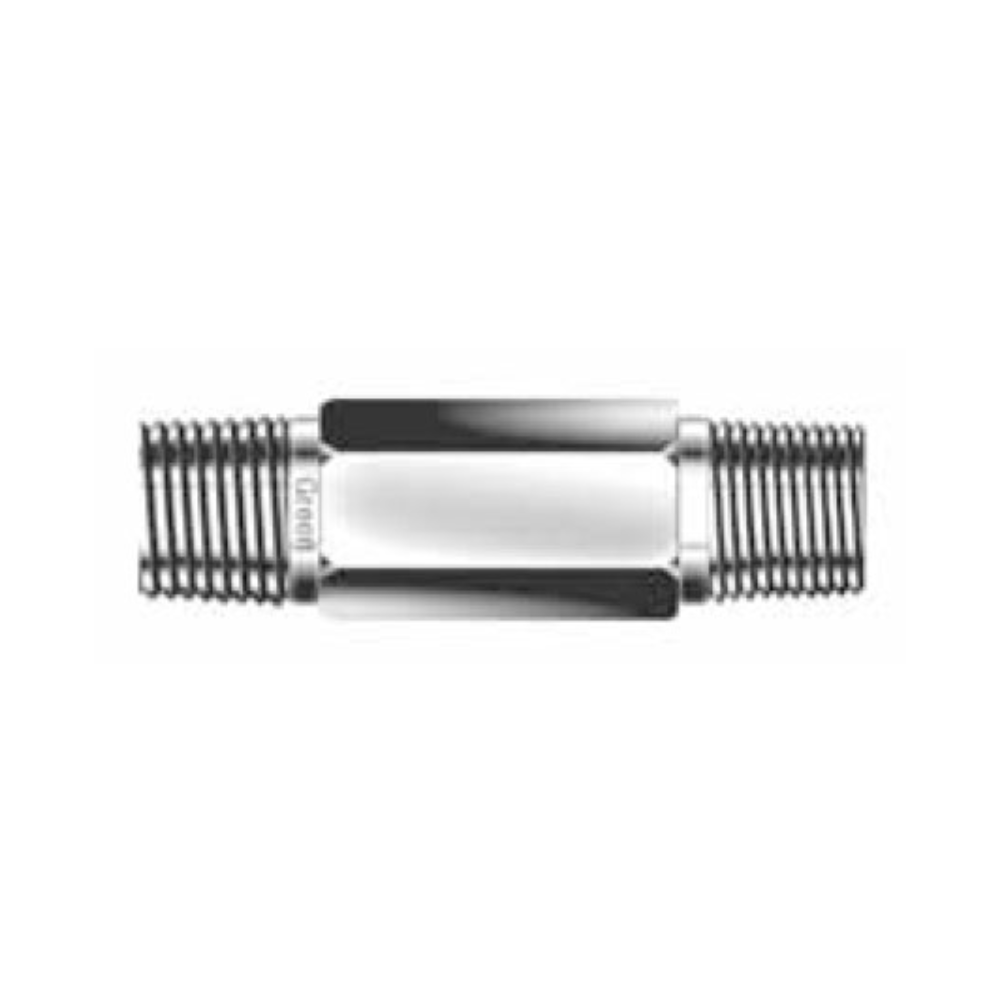

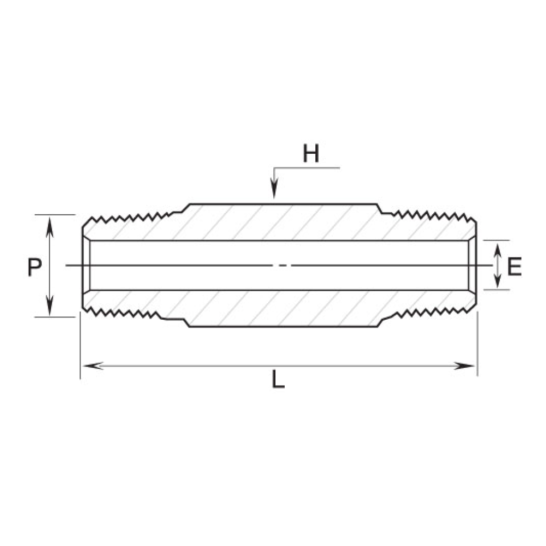

DK-LOK SS316 Hex Long Nipple (Male NPT both ends) GNL Series
SS316 Hex Long Nipple (Male NPT both ends)
Model No.
GNL-N-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.
Male NPT both ends

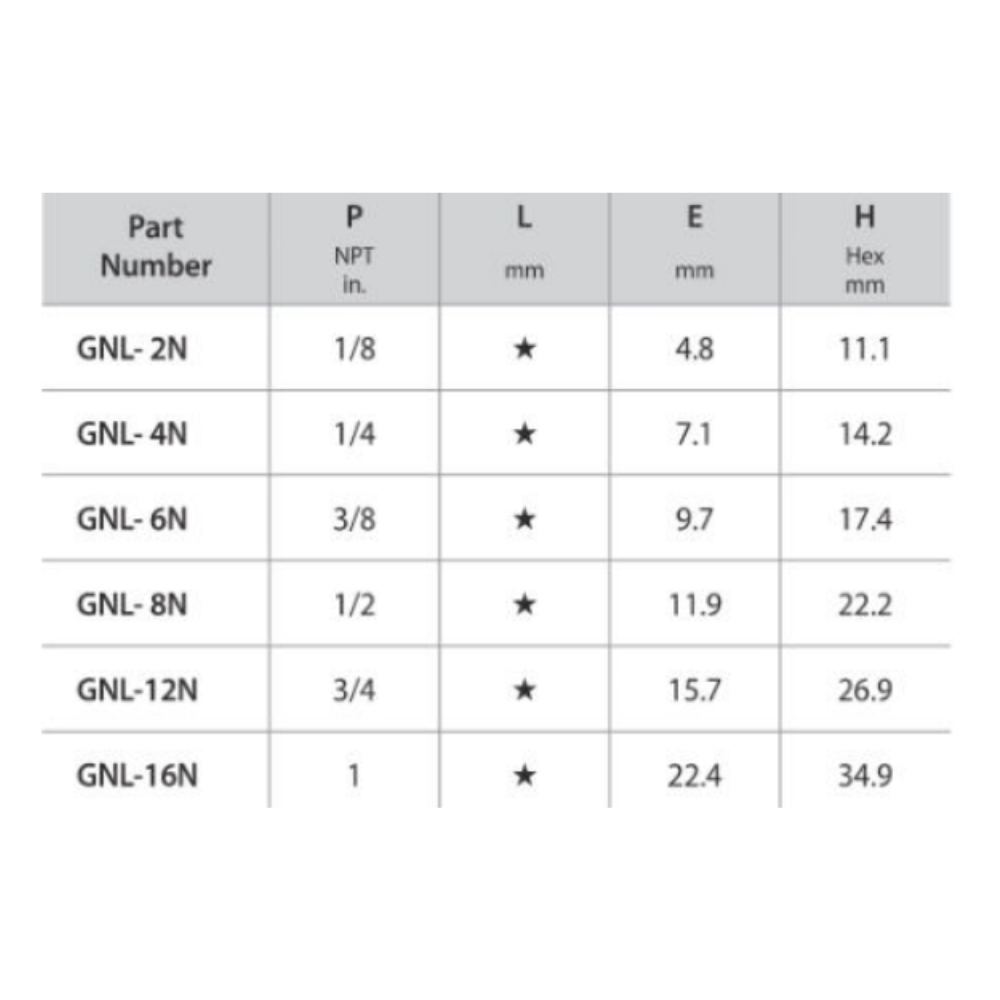

| Part number | P(NPT in.) | Size (length inch) |
| GNL-2N3.0-SS | 1/8 | 3 |
| GNL-4N2.0-SS | 1/4 | 2 |
| GNL-4N3.0-SS | 1/4 | 3 |
| GNL-4N4.0-SS | 1/4 | 4 |
| GNL-4N5.0-SS | 1/4 | 5 |
| GNL-4N6.0-SS | 1/4 | 6 |
| GNL-6N3.0-SS | 3/8 | 3 |
| GNL-6N4.0-SS | 3/8 | 4 |
| GNL-6N6.0-SS | 3/8 | 6 |
| GNL-8N3.0-SS | 1/2 | 3 |
| GNL-8N4.0-SS | 1/2 | 4 |
| GNL-8N6.0-SS | 1/2 | 6 |
| GNL-12N3.0-SS | 3/4 | 3 |
| GNL-12N4.0-SS | 3/4 | 4 |
| GNL-12N6.0-SS | 3/4 | 6 |
| GNL-16N3.0-SS | 1 | 3 |
| GNL-16N4.0-SS | 1 | 4 |
| GNL-16N6.0-SS | 1 | 6 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
