DK-LOK BRASS Hex Long Nipple (Male NPT both ends) GNL Series

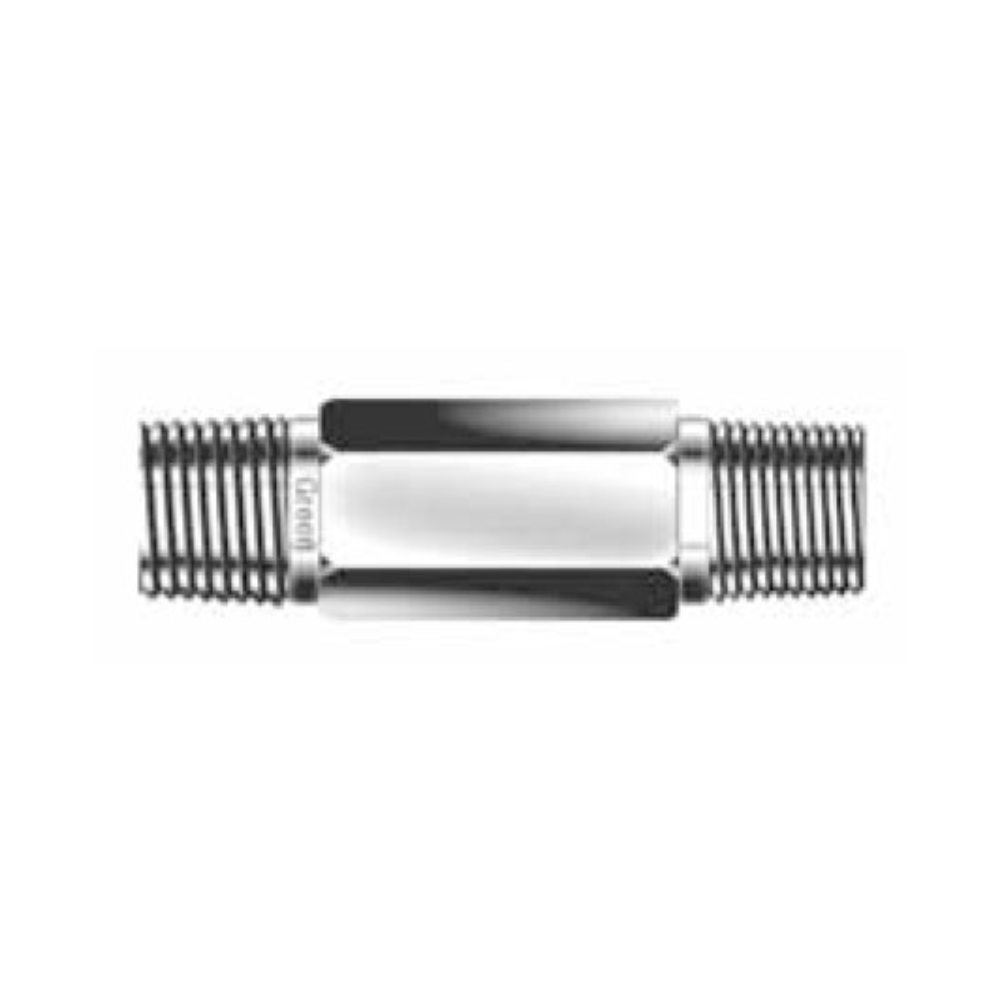

BRASS Hex Long Nipple (Male NPT both ends)
Model No.
GNL-N-B
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.
Male NPT both ends

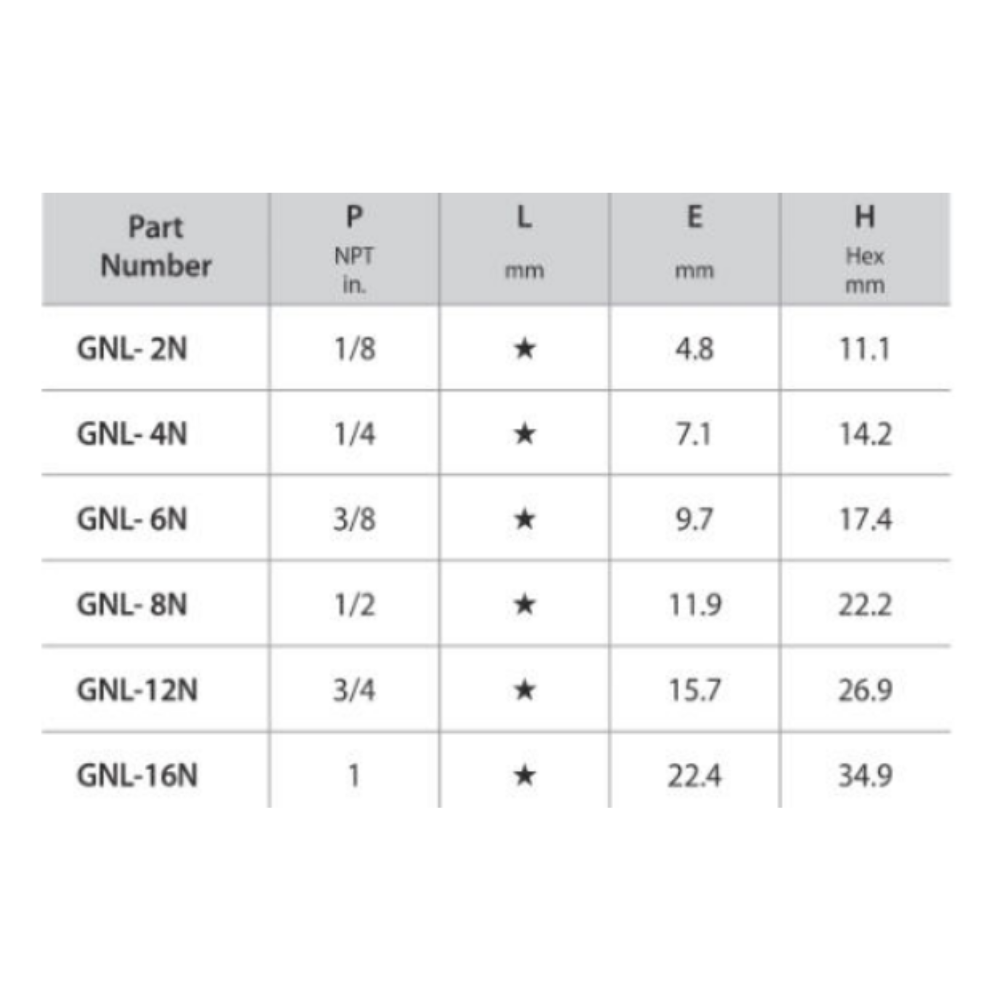

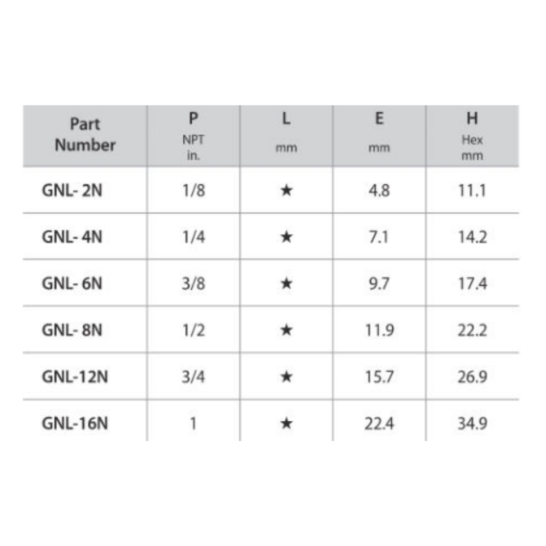

| Part number | P(NPT in.) | Size (length inch) |
| GNL-4N3.0-B | 1/4 | 3 |
| GNL-4N4.0-B | 1/4 | 4 |
| GNL-8N3.0-B | 1/2 | 3 |
| GNL-8N4.0-B | 1/2 | 4 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
