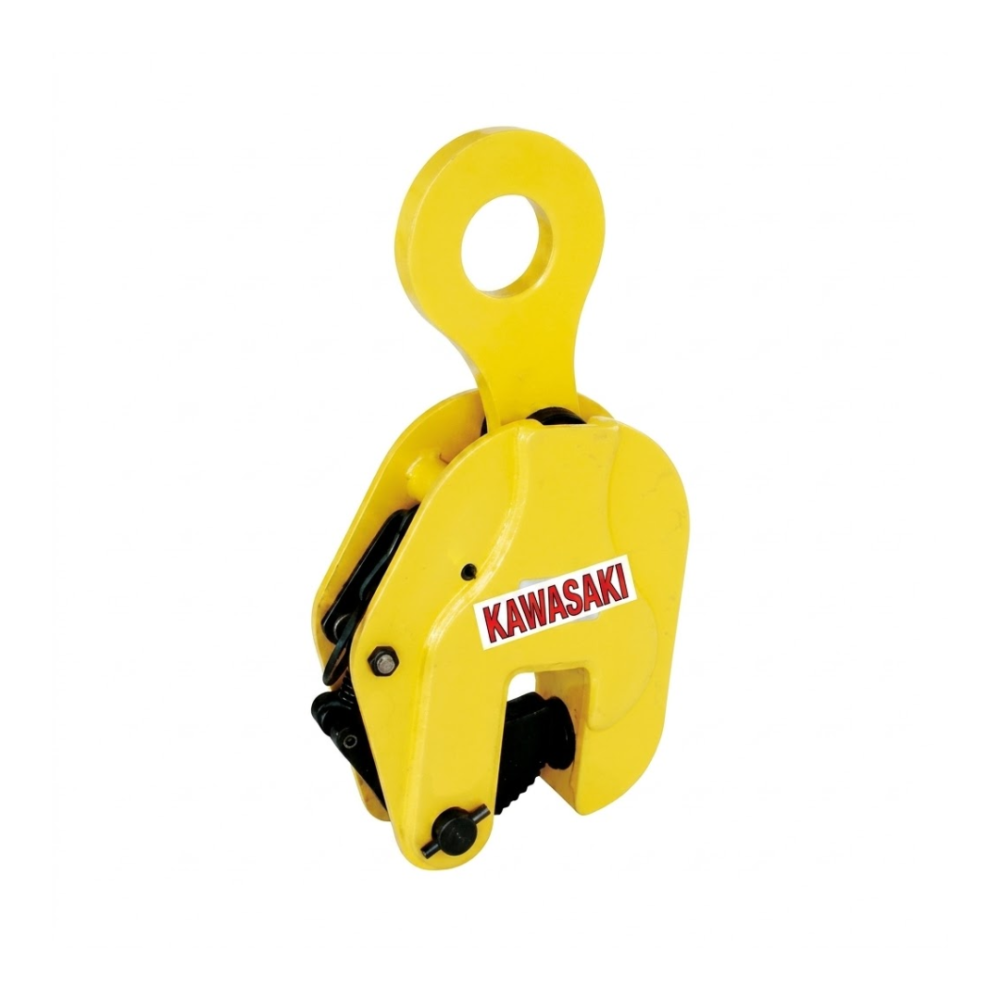

E-Type Vertical Lifting Clamp

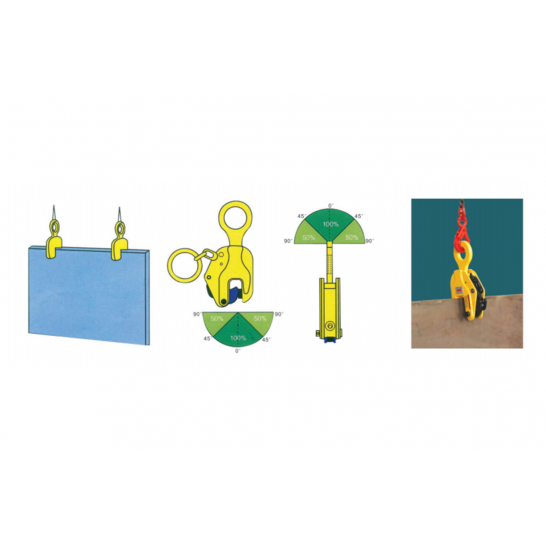

Standard design clamp for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism assures a positive initial clamping force.
• Clamp are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
• The clamp is locked in closed as well as in open position.
• High-frequency quenching of die-forged special alloy steels gives greater durability to the cam

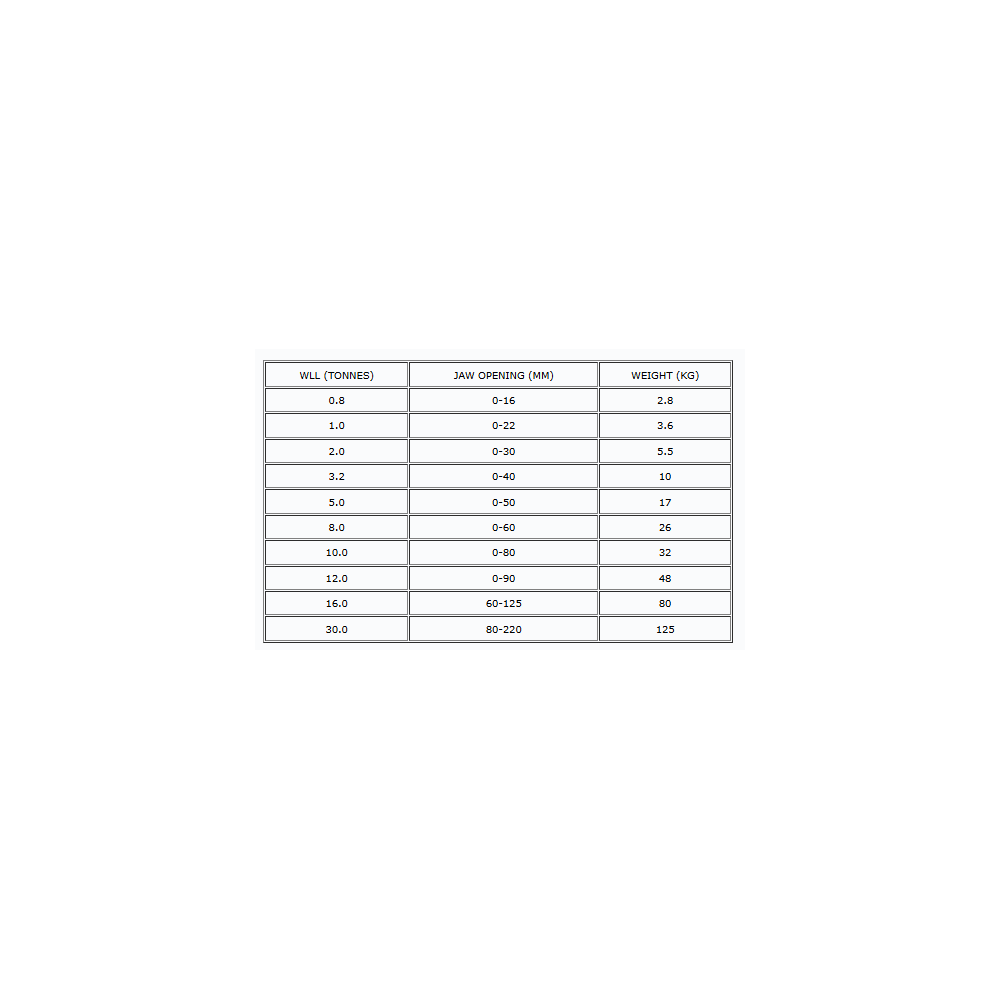

| WLL (TONNES) | JAW OPENING (MM) | WEIGHT (KG) |
| 0.8 | 0-16 | 2.8 |
| 1.0 | 0-22 | 3.6 |
| 2.0 | 0-30 | 5.5 |
| 3.2 | 0-40 | 10 |
| 5.0 | 0-50 | 17 |
| 8.0 | 0-60 | 26 |
| 10.0 | 0-80 | 32 |
| 12.0 | 0-90 | 48 |
| 16.0 | 60-125 | 80 |
| 30.0 | 80-220 | 125 |
