Brand:

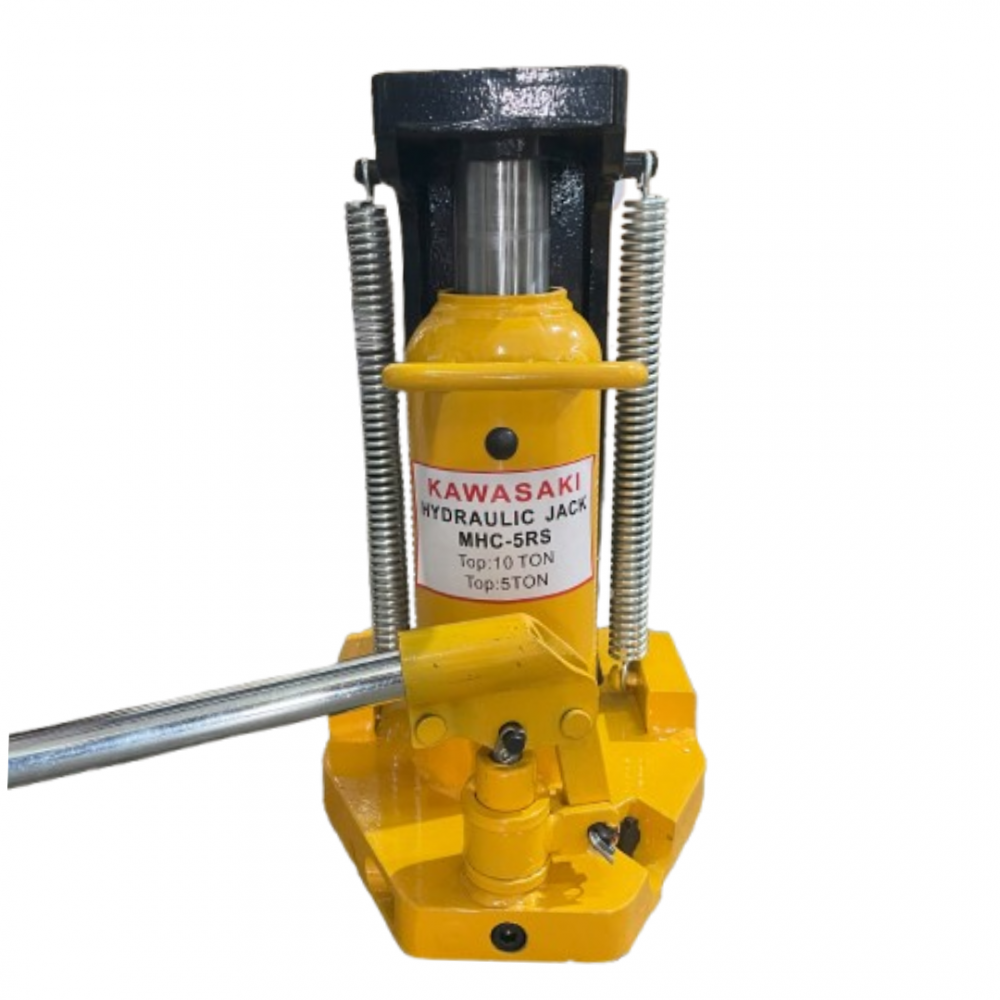

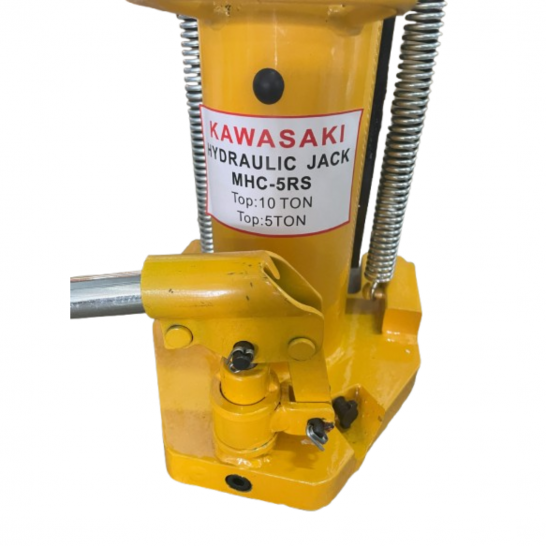

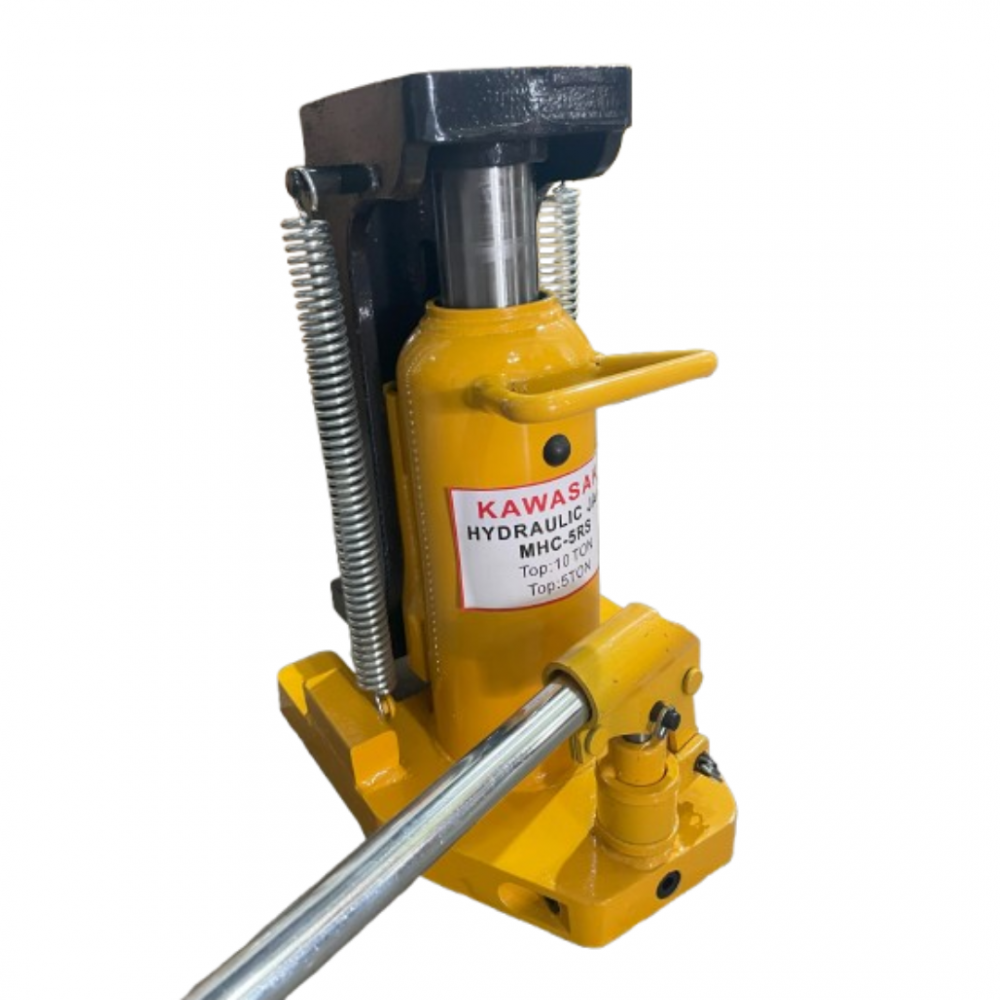

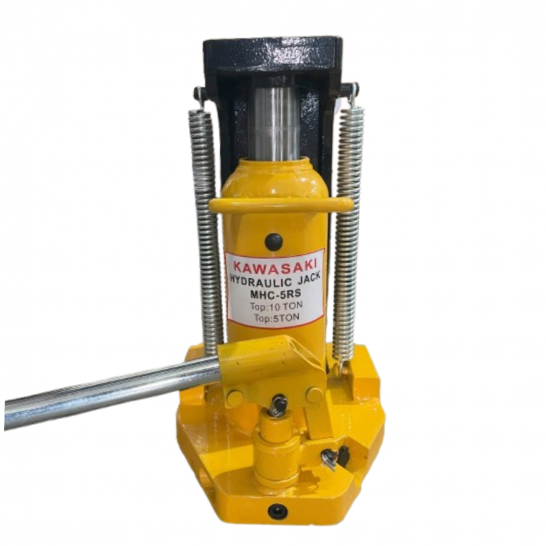

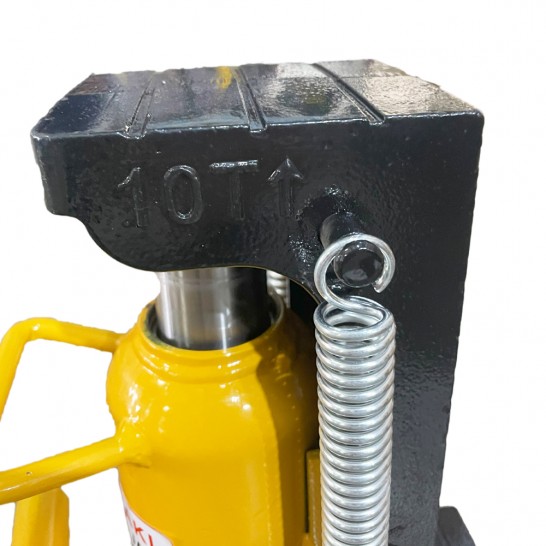

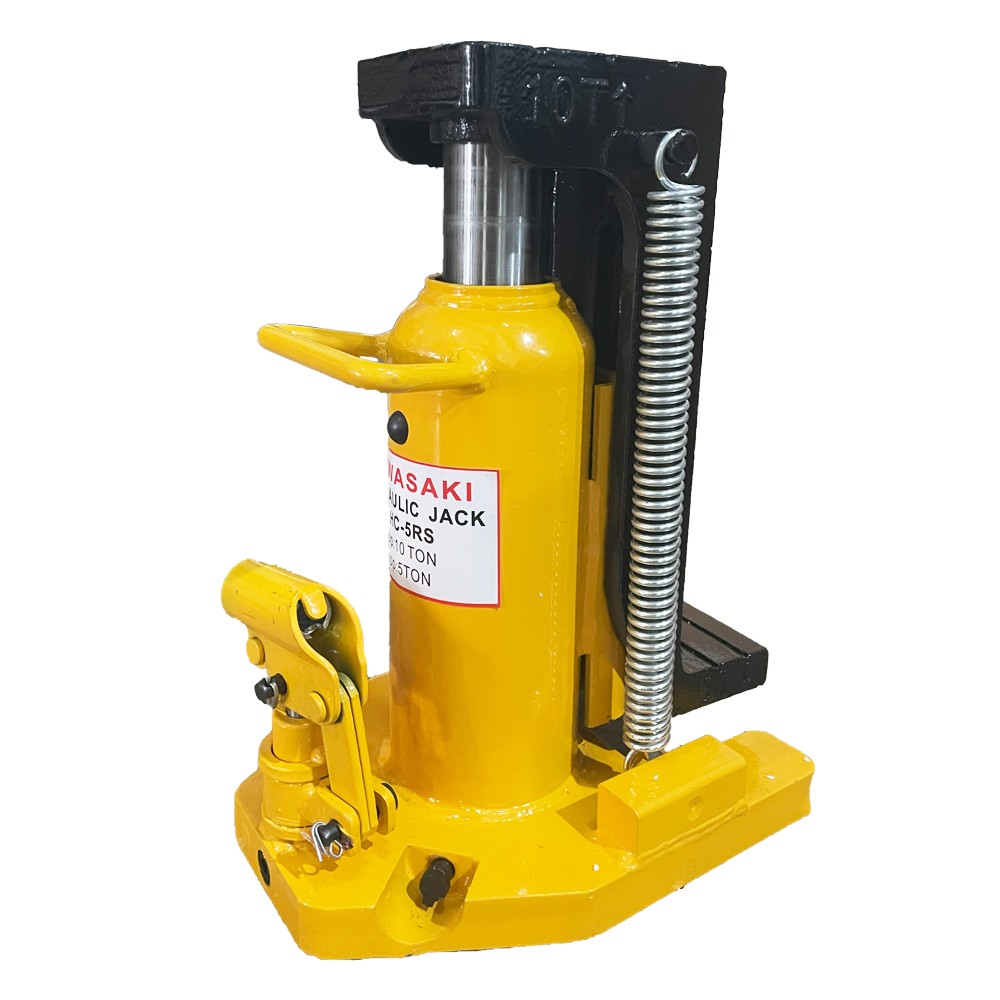

KAWASAKI HYDRAULIC TOE JACK 5TON/10TON
HYDRAULIC TOE JACK
Model No.
KTJ50
KTJ50
Data sheet
- Gross Weight
- 22 kg
- Top capacity (Ton)
- 10
- Bottom capacity (Tons)
- 5
- Movable claw lowest position, C (mm)
- 22
- Fixed claws lowest position, D (mm)
- 25
- Top lowest position, A (mm)
- 295
- Ram Stroke (mm)
- 135
- Claw max lifting height, E (mm)
- 160
- Top max lifting height, B (mm)
- 430
- Base length, M (mm)
- 242
- Base width, H (mm)
- 190
- Movable claw width, J (mm)
- 94
- Movable claw length, F (mm)
- 57
- Top width, K (mm)
- 94
- Top length, L (mm)
- 110
- Package dimensions, LxBxH (mm)
- 325 x 265 x 370
