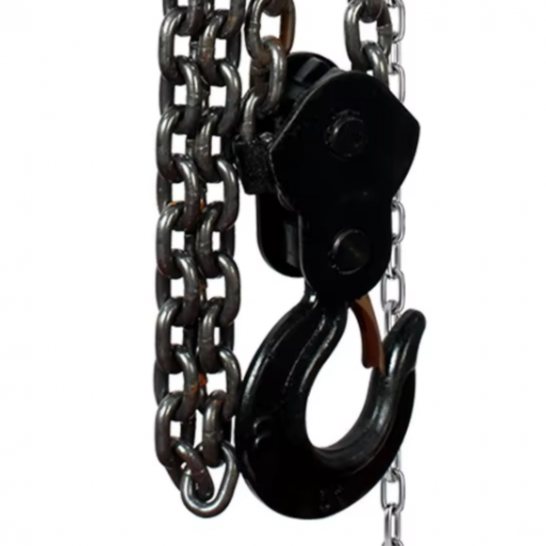

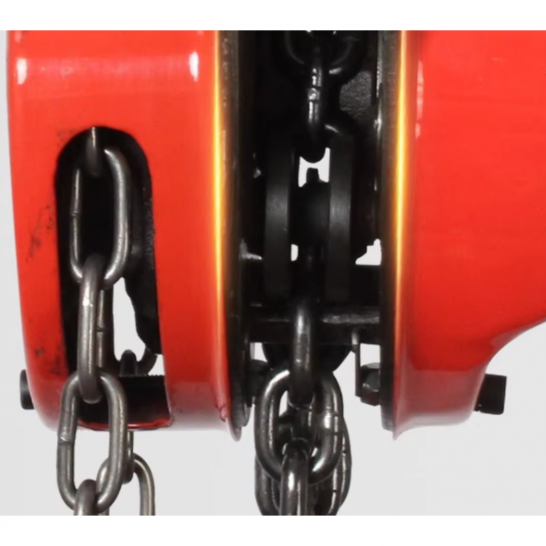

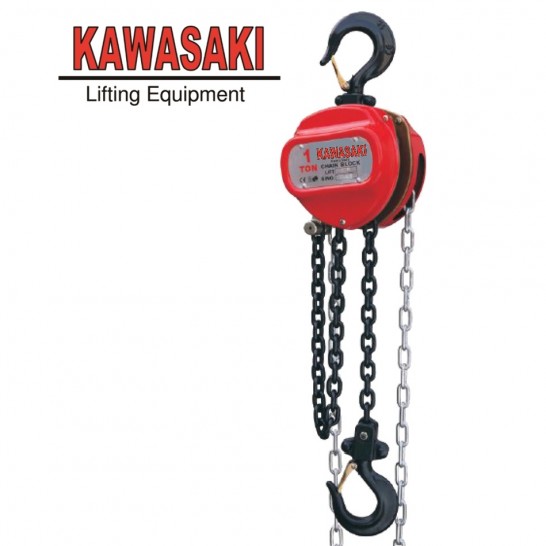

KAWASAKI Chain Block. Manual Lifting Chain Hoist. 0.5ton to 20ton.
CK Series hand chain hoist include all the preferenrials, which are expected by the user: quality, safety and performace, at a favourable price.
Model No.
KCH05CK-3
$88.07
- Capacity available from 0.5ton to 20ton
- Robust, all-steel construction
- Very low headroom allows optimal use of available space
- Compact and light weight
- Roller and ball bearing on all rotating parts reduce loss of friction and increase smooth and efficient operation.
- A fully enclosed stamped steel housing allows also out-door use
- Zinc plated hand chain.
- Overload protection device(slip clutch) available
- MOM Testing can be done at additional cost
Every hand chain hoist is operationally tested to 150% of the rated capacity and is issued an ivdividual test certificate with serial number.
| MODEL | KCH05CK-3 | KCH10CK-3 | KCH15CK-3 | KCH20CK- | KCH30CK- | KCH50CK- | KCH100CK- | KCH200CK- | |
| Capacity | TON | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Standard Lift | M | 3 | 3 | 3 | 3/5 | 3/5 | 3/5 | 3/5 | 3/6/10 |
| Running test load | TON | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 |
| Effort Required To lift max load | N | 200 | 304 | 360 | 385 | 385 | 435 | 435 | 435X2 |
| Net weight | KG | 8 | 10 | 16 | 16/21 | 24/31 | 36/46 | 68 | 156 |
| Extra weight Per M of | KG | 1.7 | 1.7 | 2 | 2.5 | 3.6 | 5.2 | 9.5 | 19 |
| Extra Lift (KG) Measurement (L*M*H) | CM | 24X18X14 | 24X18X14 | 30X20X16 | 30X20X16 | 34X24X16 | 39X30X18.5 | 55X43X23 | 78X40X70 |
KCH05CK-3
Data sheet
- Model
- Capacity
- KCH05CK-3
- 0.5TON X 3MTR
- KCH15CK-25
- 1.5Ton 2.5MTR
- KCH20CK-3
- 2.0Ton 3MTR
- KCH20CK-5
- 2.0Ton 5MTR
- KCH10CK-3
- 1.0Ton 3MTR
- KCH30CK-3
- 3.0Ton 3MTR
- KCH30CK-5
- 3.0Ton 5MTR
- KCH50CK-3
- 5.0Ton 3MTR
- KCH50CK-5
- 5.0Ton 5MTR
- KCH100CK-3
- 10Ton 3MTR
- KCH100CK-5
- 10Ton 5MTR
- KCH150CK
- 15Ton
- KCH200CK-3
- 20Ton 3MTR
- KCH200CK-6
- 20Ton 6MTR
- KCH15CK-3
- 1.5Ton 3MTR
- KCH200CK-10
- 20Ton 10MTR
