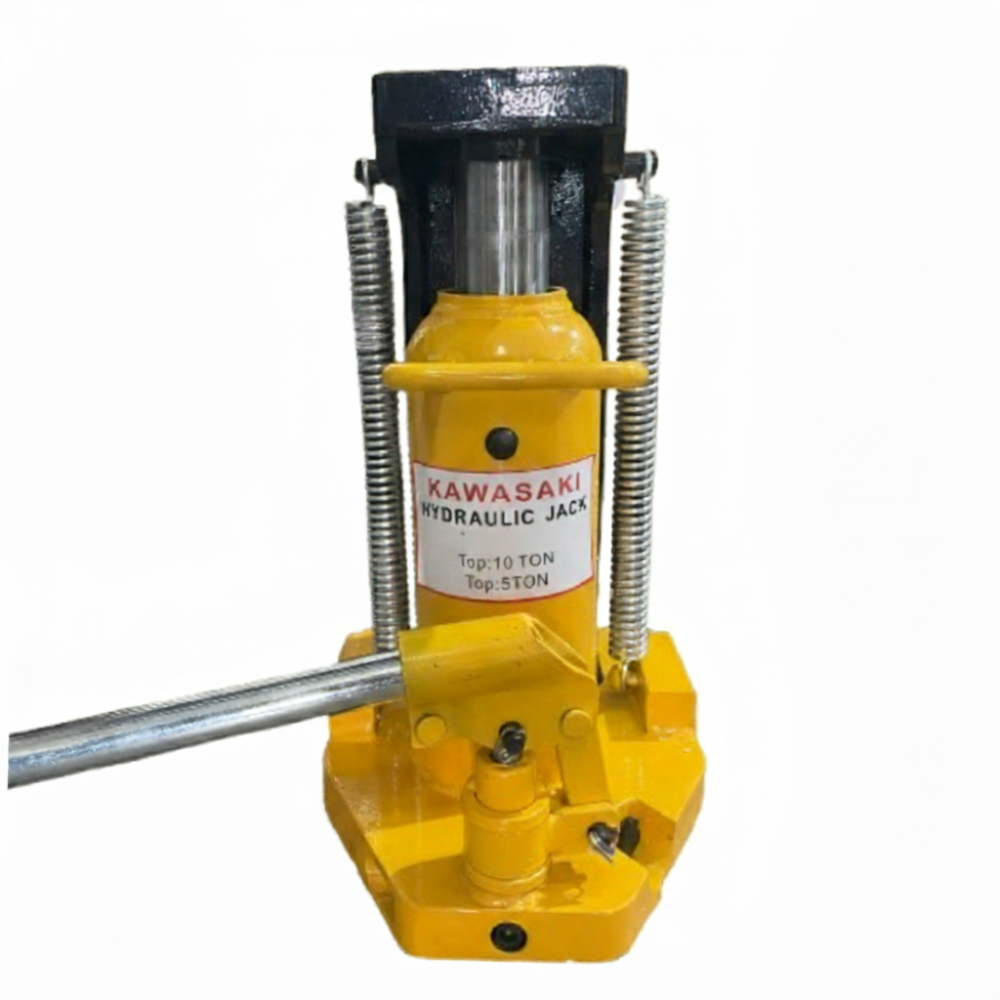

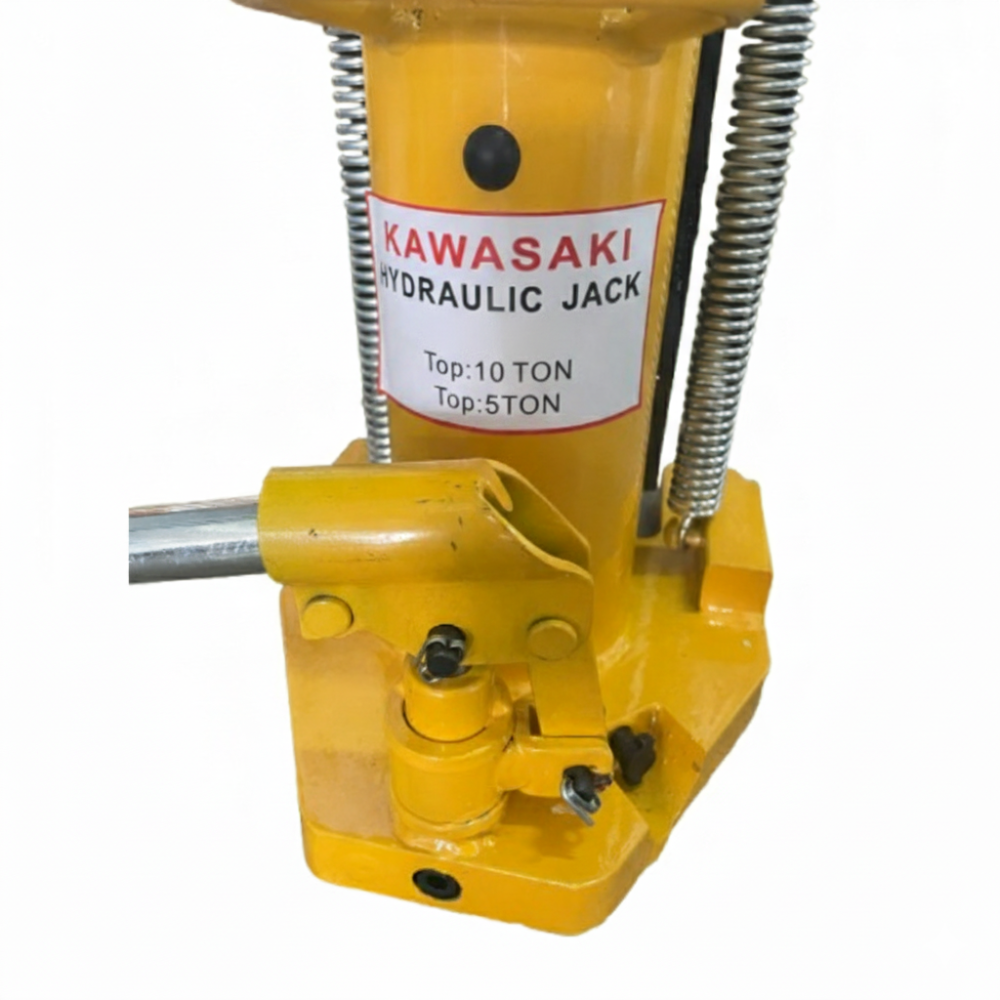

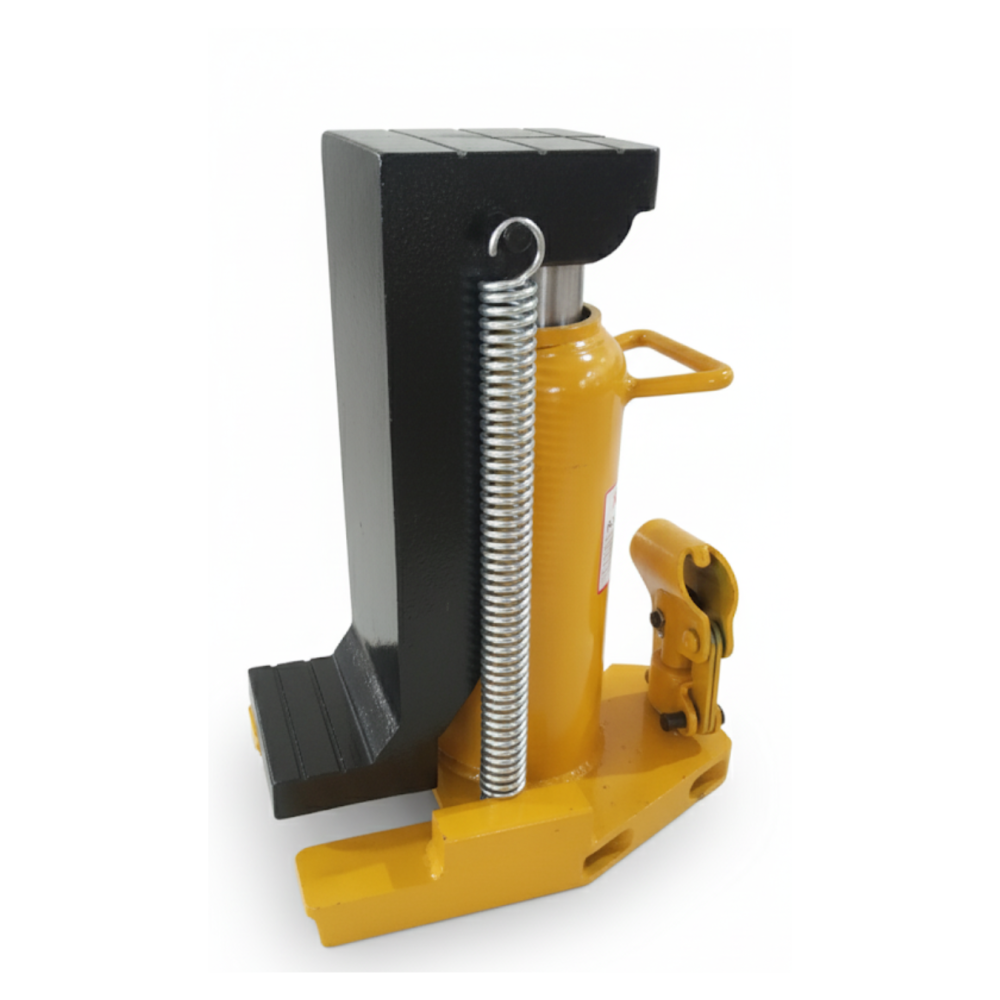

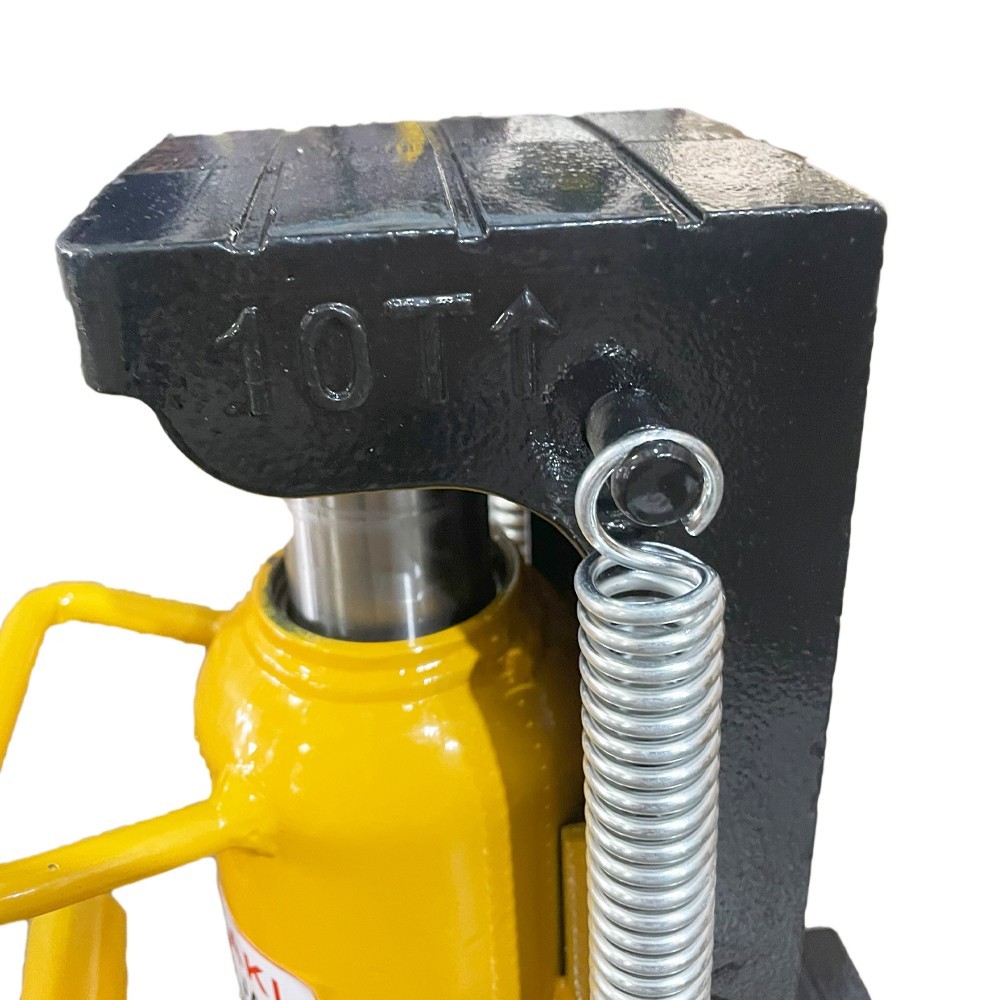

Hydraulic Toe Jack 10Ton
Hydraulic Toe Jack 10Ton
Model No.
KTF-10
Capacity: 10Ton
Model: KTJ10
|
Top Capacity (Ton) |
20 |
|
Bottom Capacity (Tons) |
10 |
|
Movable Claw Lowest Position, C (mm) |
27 |
|
Fixed Claws Lowest Position, D (mm) |
28 |
|
Top Lowest Position, A (mm) |
325 |
|
Ram Stroke (mm) |
145 |
|
Claw Max Lifting Height, E (mm) |
173 |
|
Top Max Lifting Height, B (mm) |
470 |
|
Base Length, M (mm) |
272 |
|
Base Width, H (mm) |
208 |
|
Movable Claw Width, J (mm) |
107 |
|
Movable Claw Length, F (mm) |
60 |
|
Top Width, K (mm) |
107 |
|
Top Length, L (mm) |
140 |
|
Net Weight (kg) |
32 |
|
Gross Weight (kg) |
34 |
|
Package Dimensions, LxBxH (mm) |
315x255x350 |
