Brand:

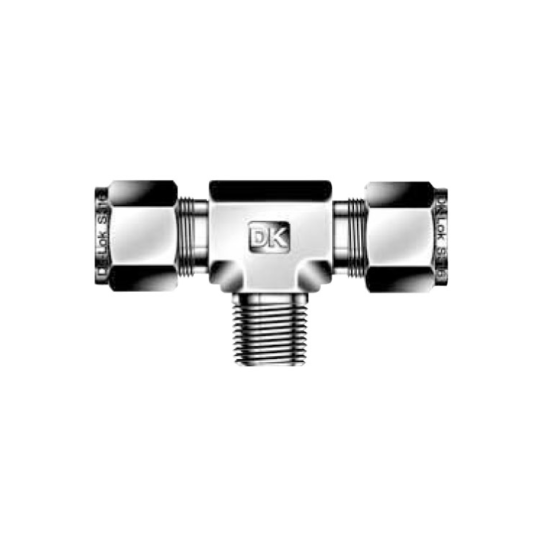

DK-LOK BRASS Male Branch Tee DTBM-R Series
Tube to Male Pipe
Model No.
DTBMX-XR-B
DK-Lok DTBM-R male connectors are designed to connect individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|

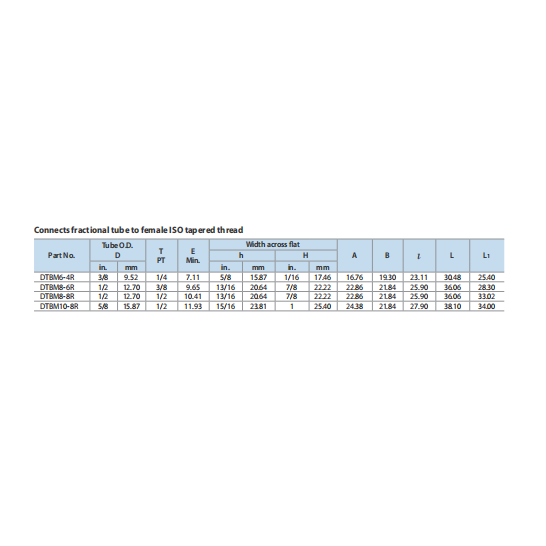

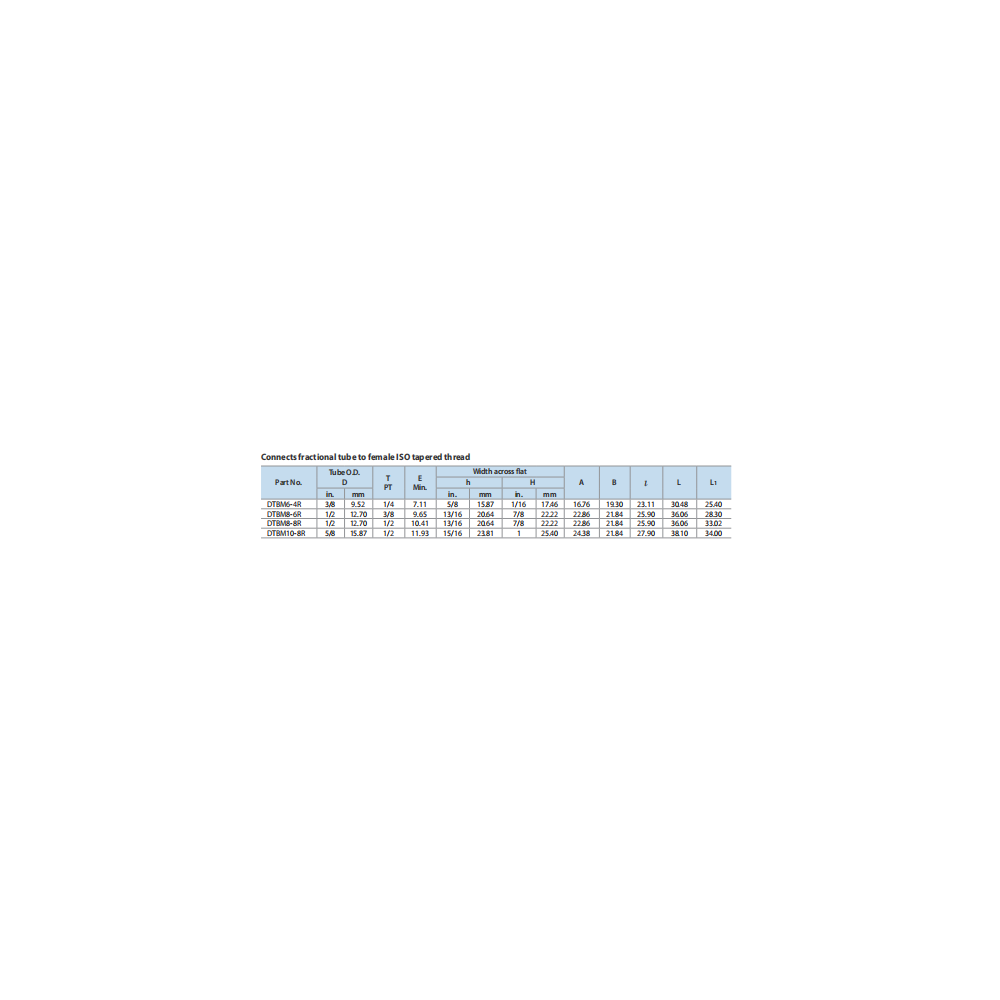

Part No |
Tube O.D. D (inches) |
T PT |
|
DTBM6-4R |
3/8 |
1/4 |
|
DTBM8-6R |
1/2 |
3/8 |
|
DTBM8-8R |
1/2 |
1/2 |
|
DTBM10-8R |
5/8 |
1/2 |
