Brand:

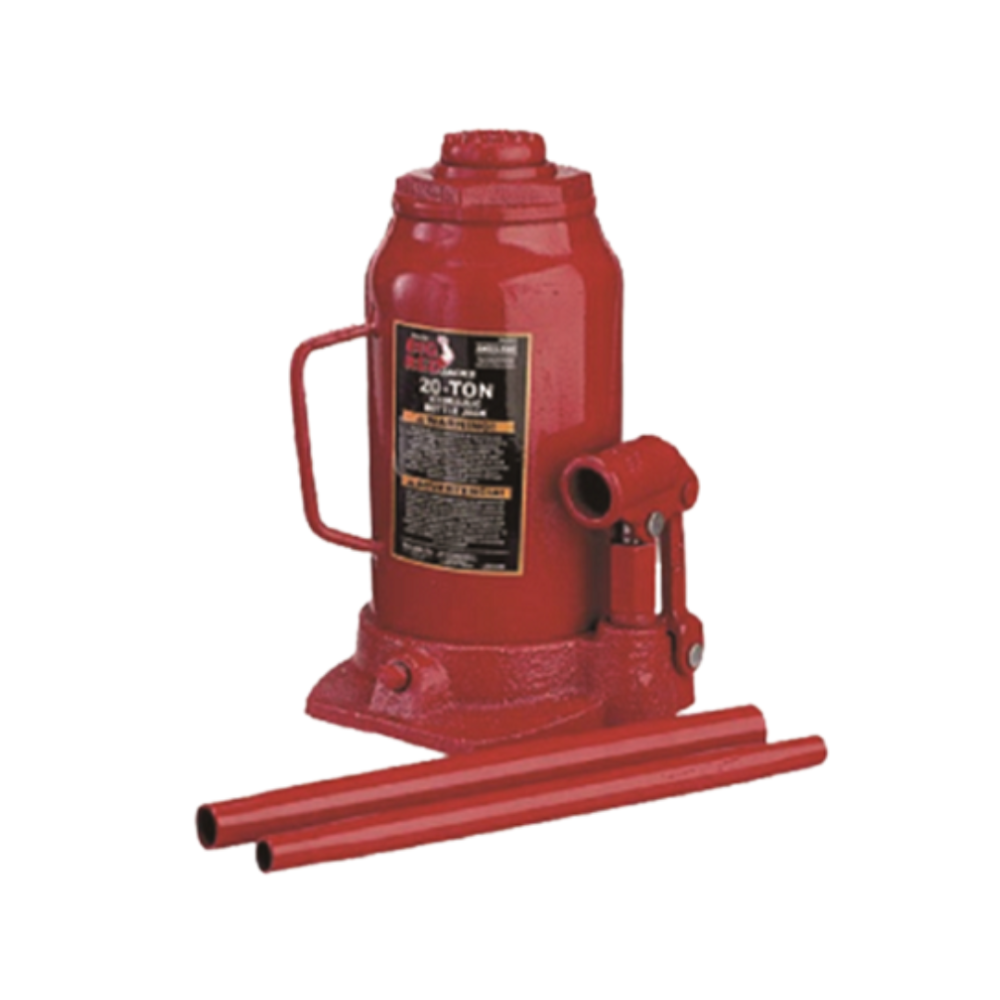

Hydraulic Bottle Jack
Hydraulic Bottle Jack
Model No.
KBJ20
Compact Structure
Small Volume
Easy to take and operate
Suitable for various vehicle jobs
| Item No. | Capacity (TON) | Min H.(MM) | Lift H.(MM) | Adjust H.(MM) | Max H.(MM) | N.W/PC (KG) | QTY (PCS) | Package Size (MM) | G.W (KG) |
| KBJ20 | 2 | 158 | 90 | 60 | 308 | 2.2 | 10 | 520*230*170 | 23 |
| KBJ30 | 3 | 180 | 110 | 50 | 340 | 3 | 5 | 580*130*190 | 16 |
| KBJ50 | 5 | 185 | 110 | 60 | 355 | 3.8 | 5 | 615*140*195 | 20 |
| KBJ80 | 8 | 200 | 125 | 60 | 385 | 4.8 | 4 | 510*145*210 | 20 |
| KBJ100 | 10 | 200 | 125 | 60 | 385 | 6.3 | 4 | 540*150*210 | 22 |
| KBJ120 | 12 | 210 | 125 | 60 | 395 | 7.3 | 2 | 570*155*220 | 15.5 |
| KBJ150 | 15 | 225 | 130 | 60 | 415 | 7.3 | 2 | 305*165*235 | 20 |
| KBJ200 | 20 | 235 | 145 | 60 | 440 | 9.6 | 2 | 340*185*250 | 20 |
| KBJ320 | 32 | 255 | 150 | 0 | 405 | 13 | 2 | 380*198*270 | 27 |
| KBJ500 | 50 | 285 | 180 | 0 | 465 | 20 | 1 | 210*185*295 | 20.5 |
