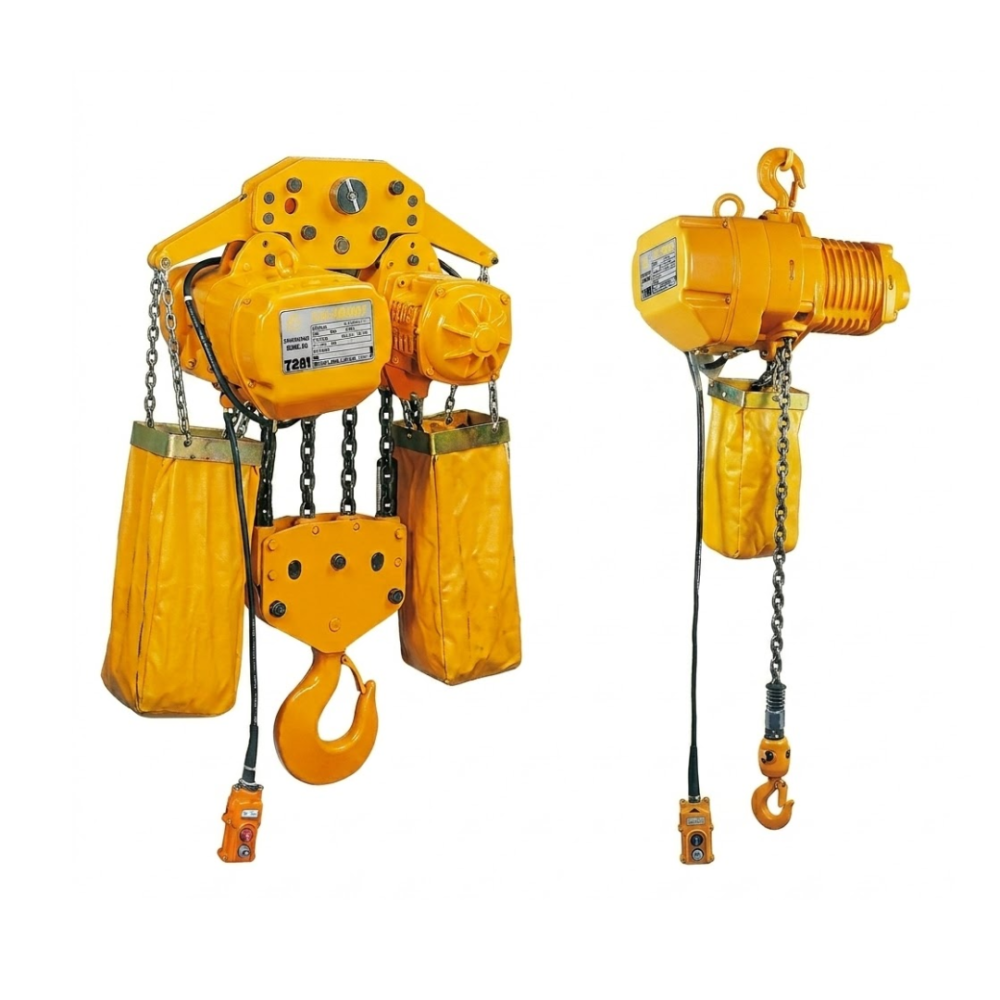

Endless Chain Electric Hoist

Load Support Yoke： Constructed of two plates of S50C steel, extremely rugged and durable.
Motor Brake: Fast-acting magnetic brake cuts in when power supply is interrupted.
Mechanical Brake: Long-service, trouble-free mechanical brake. Together with motor brake, provides dual braking system to assure operating safety.
Housing: The aluminum alloy motor housing is light in weight and provides good teat dissipation, allowing up to 30 minutes continuous duty. Fully-enclosed design, suitable for applications, electro-plating factories, ect…
Negative Phase Detector: Motor will not run if power supply is wrongly wired.
36V Controller
Voltage: Prevents injury in the event of current leakage from push-button control unit.
Limit Switches: Limit switches limit vertical travel to prevent chain jamming or detachment and to assure safety.
Chain: Japanese-made FEC80 super alloy steel, heat-treated chain is suitable for applications in harsh operating environments.
Hooks: Hot forged, excellent strength and toughness. Bottom hook swivels through 360 degrees. Safety catches on top and bottom hooks.
