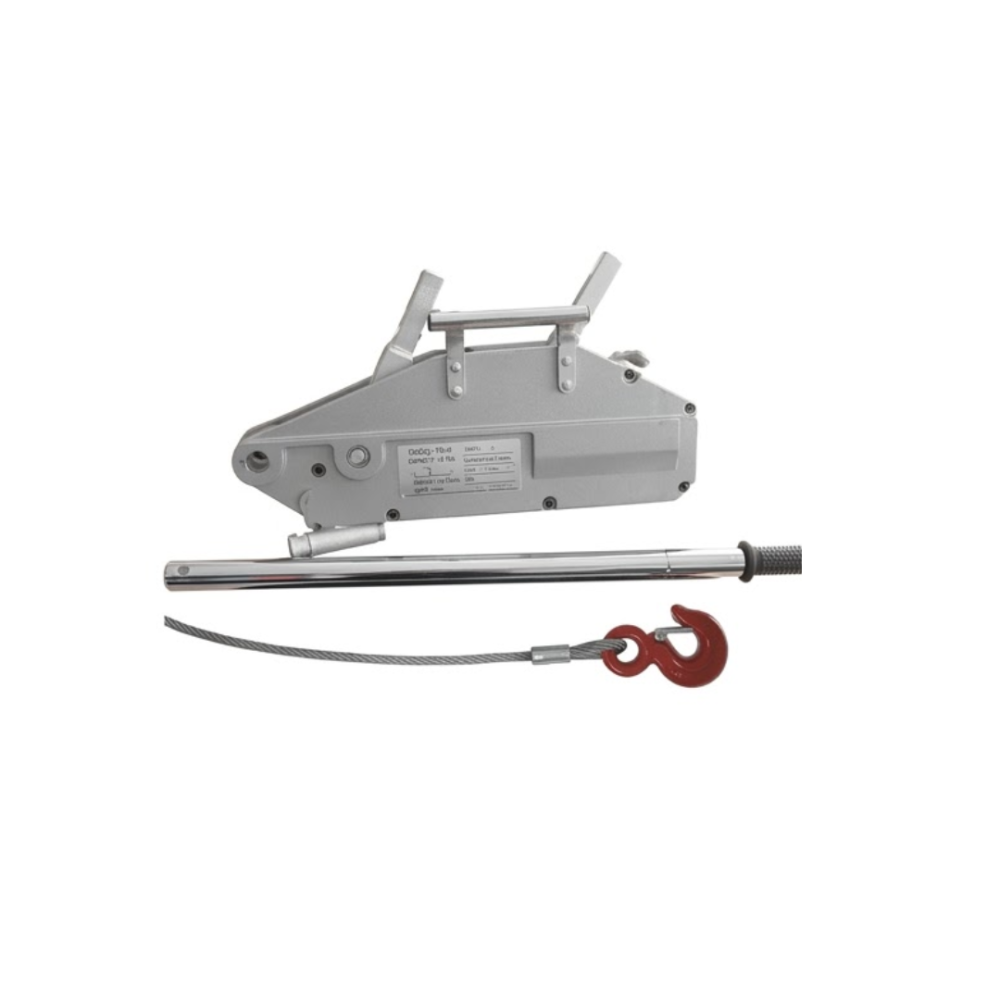

NHS-Wire Rope Hand Hoist

1).Push ahead the handle of pincers C, C is in the position when you hear crack sound. The mouth of the pincers will be opened for the wire rope.
2). Fix the machine, adjust the length of wire rope, press the handle C backward till the mouth of pincers bites the wire rope.
3). Insert the bar in handle A, and swing it found and backward. The wire rope will move ahead accordingly.
4). Insert the bar in handle B, and swing it front and backward. The wire rope will move backward and come out of the mouth of pincers.
5). Make sure of the condition that wire rope is under no pulling force and repeat the first step. Open the mouth of pincers, and take out the wire rope, and then press handle C backward. Finally, put the machine back into the box for the next time.

Remarks: Please operate the machine according to the rated loading capacity. When it is overloaded, the safety pin D will work to cut off automatically. In that case please replace safety pin D before operating again.
