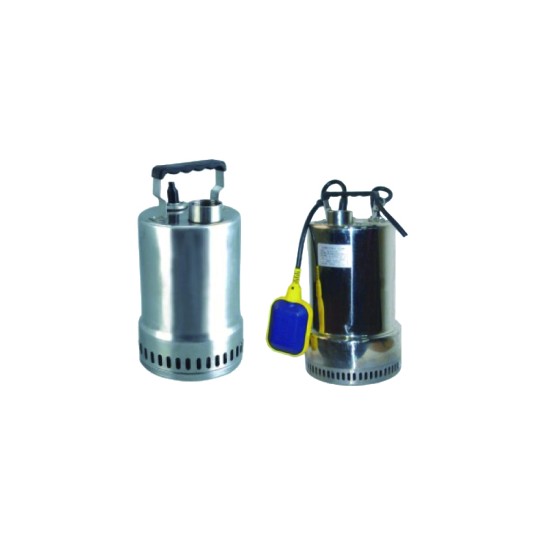

QDX-BS A Series Submersible Pump Stainless Steel

Applications:
Complete stainless steel pumps with rust free, corrosion resistant features.
Designed for transferring seawater and common corrosive medium similar to water in density and viscosity.

Specifications
1. Power Cable: QDX3-5-0.12BS, QDX3-7-0.18BS, QDX5-7-0.25BS: Standard cord is 6m, QDX2-30-0.75BS: Standard cord is 10m
2. Liquid Temperature: 104 F(40°C) continuous
3. Motor: B insulation class, IP68 protection
4. Single Phase: Built in thermal protector
5. Accessories: Float switch is available

Part Specifications
1. O-ring: Buna-N
2. Motor Housing: 304SS
3. Shaft: 304SS welding shaft
4. Double-sided Mechanical Seal: Buna-N elastomers
Motor side: Carbon VS Silicon Carbide
Pump side: Silicon Carbide VS Silicon Carbide
5. Impeller: QDX3-5-0.12BS, QDX3-7-0.18BS, QDX5-7-0.25BS: 304SS welding
QDX2-30-0.75BS: Fiber reinforced plastic
6. Pump Casing: QDX3-5-0.12BS, QDX3-7-0.18BS, QDX5-7-0.25BS: 304SS
QDX2-30-0.75BS: Fiber reinforced plastic
