BOSCH GCL 2-15G Self-Leveller Cross Line Green Laser 10-15M
Combi Laser
EAN 3165140869553

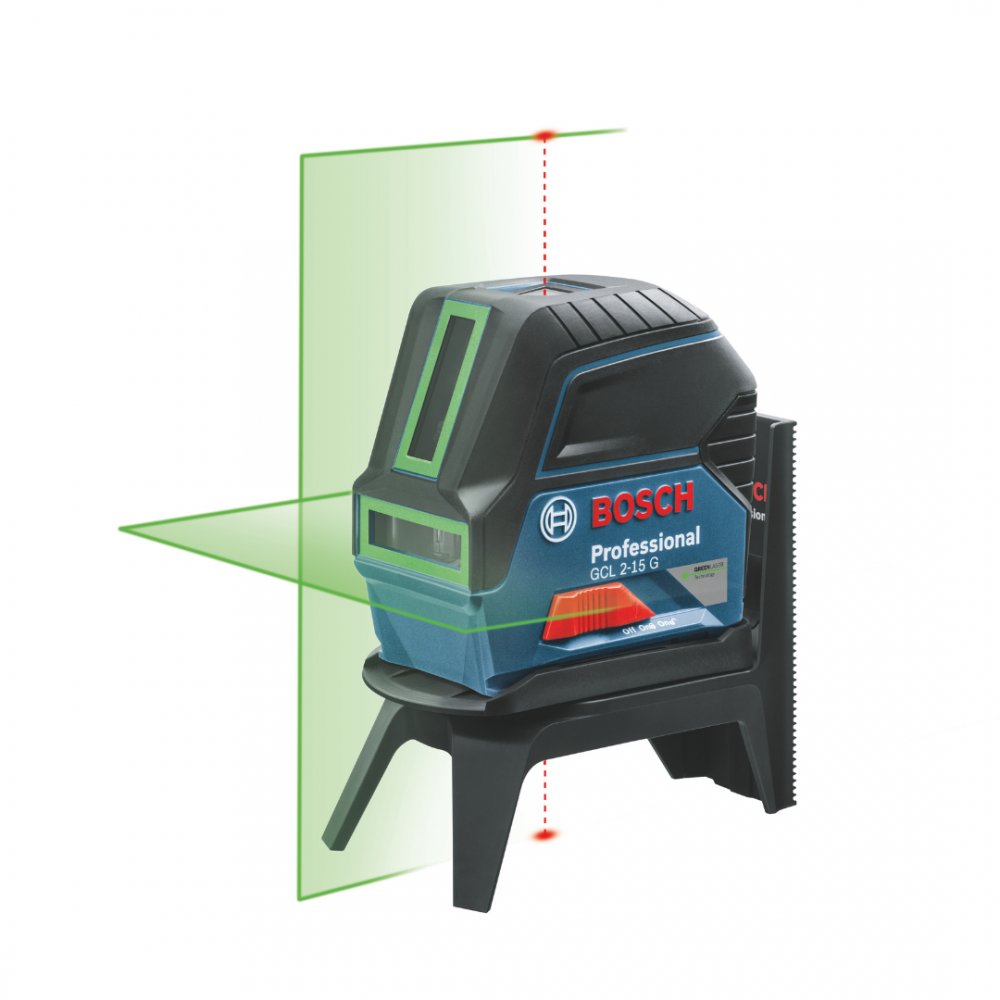

Green laser lines for up to four times better visibility
- Green horizontal and vertical laser lines for up to four times better visibility than red lines
- Precise transfer applications thanks to red plumb points

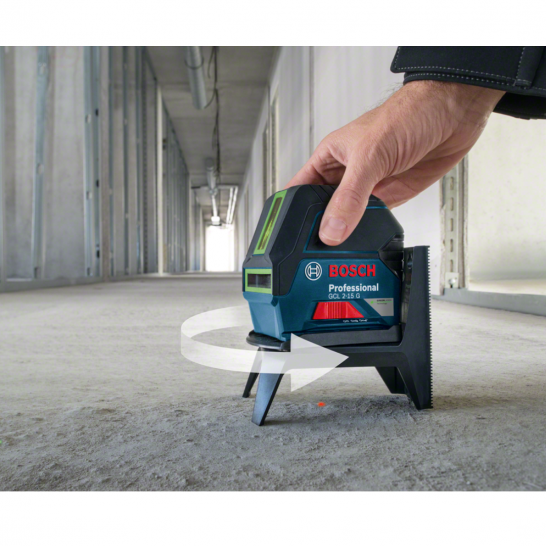

- Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points
Product Highlights
Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional.
Equipment & Application

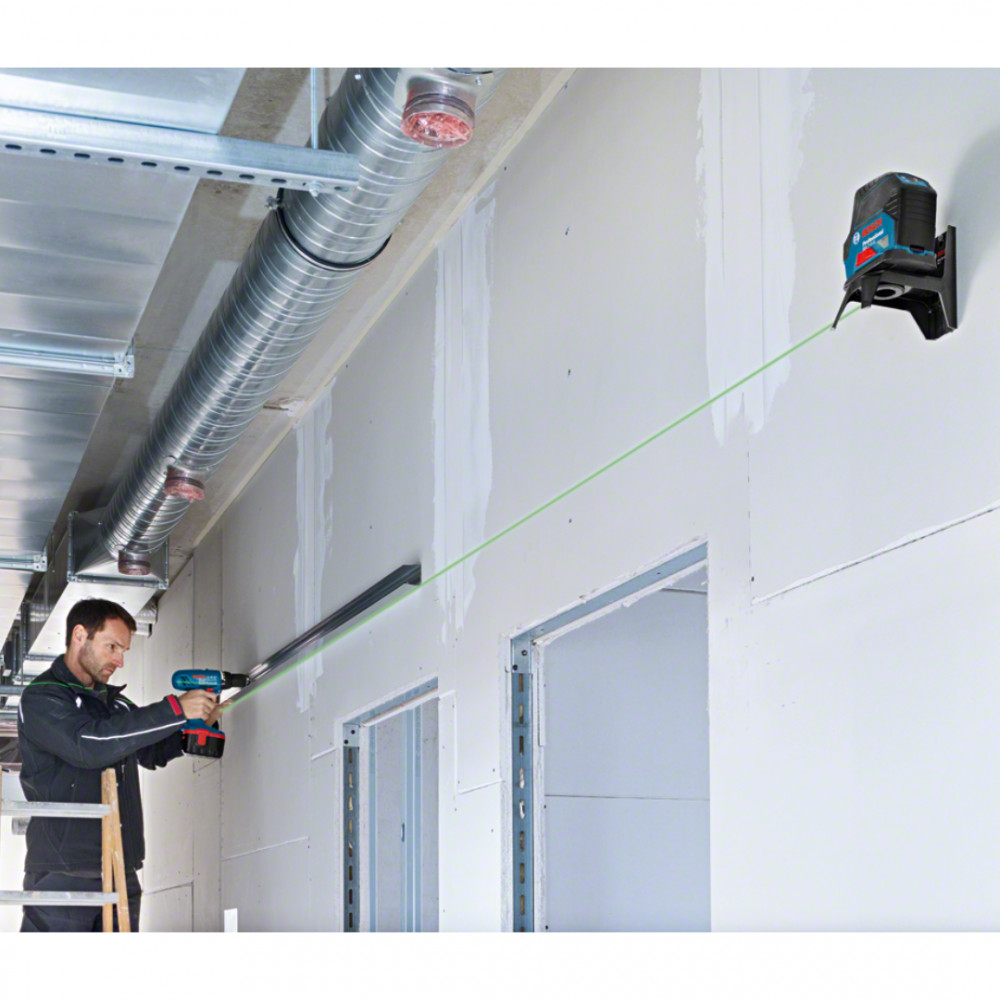

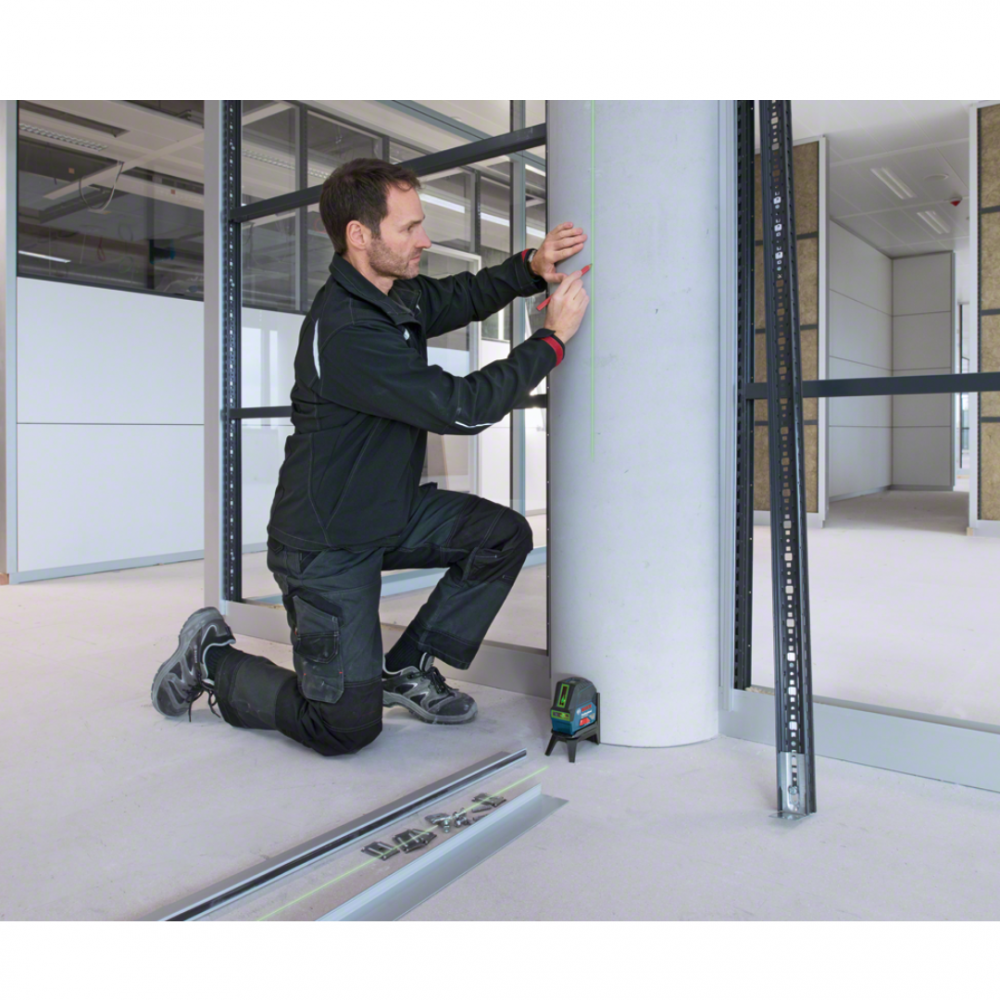

The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings.
Additional Information
The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage.
Item includes : Rotating mount RM 1 Professional , 3 x 1.5 V LR6 battery (AA), Ceiling clamp, Carrying case, Laser target plate
Data sheet
- Laser diode
- Line
- Laser class
- 2
- Power supply
- 3 x 1.5 V LR6 (AA)
- Dust and splash protection
- IP 54
- Accuracy
- ± 0.3 mm/m (plus use-dependent deviation)
- Operating temperature
- -10 - 50 °C
- Storage temperature
- -20 - 70 °C
- Weight approx.
- 0.49 kg
- Working range
- up to 15 m
- Working range value
- 15 m
- Self-levelling range
- ± 4°
- Levelling time
- 4 s
- Operating time (max.)
- 6 h in cross line and point mode 8 h in cross line mode 10 h in line and point mode 12 h in line mode 22 h in point mode
- Tripod thread
- 1/4" 5/8"
- Colour of laser line
- Green
- Working range of laser points max.
- 10 m (top) 10 m (bottom)
- Projection
- 2 lines / 2 points
- Plumb point accuracy
- ± 0.7 mm/m (plus use-dependent deviation)
