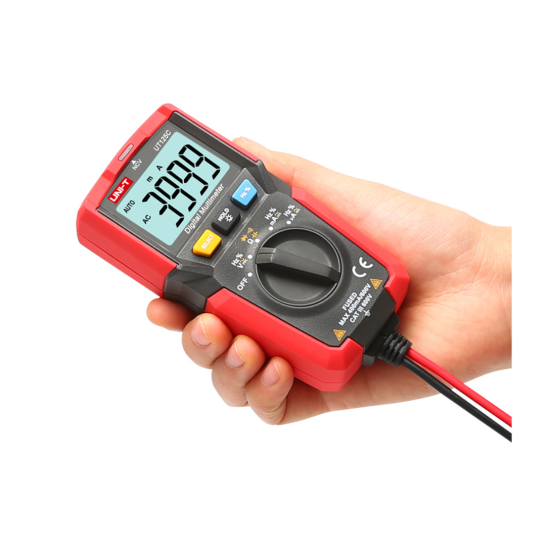

Pocket Size Digital Multimeter
Pocket Size Digital Multimeter
Model No.
UT125C
-Small size, easy to carry and operate
-600V DC/AC voltage measurement
-400mA DC/AC current measurement
-Resistance/Capacitance/Diode/Continuity test
-Frequency/Duty cycle measurement
-CE (EMC, LVD, RoHS), cETLus
-CAT III 600V
-1m drop test
| Specifications | Range | UT125C |
| DC Voltage (V) | 600V | ±(0.5%+5) |
| AC Voltage (V) | 600V | ±(1.2%+5) |
|
DC Current (A) |
400mA | ±(1.8%+5) |
| AC Current (A) | 400mA | ±(2%+8) |
| Resistance (Ohm) | 40M ohm | ±(1%+5) |
|
Capacitance (F) |
100F | ±(4%+10) |
| Frequency (Hz) | 10Hz-60kHz | ±(0.1%+5) |
| Duty Circle | 20-80% | Reference |
| Features | ||
| NCV | ✓ | |
| Diode / Continuity Test | ✓ | |
| Low Battery indication | ✓ | |
| Data hold/ Auto power off | ✓ | |
| Operating temperature | 0-50°C | |
| General Characteristic | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 38mm x23mm | |
| Product Colour | RED & GREY | |
| Product net weight | 180G | |
