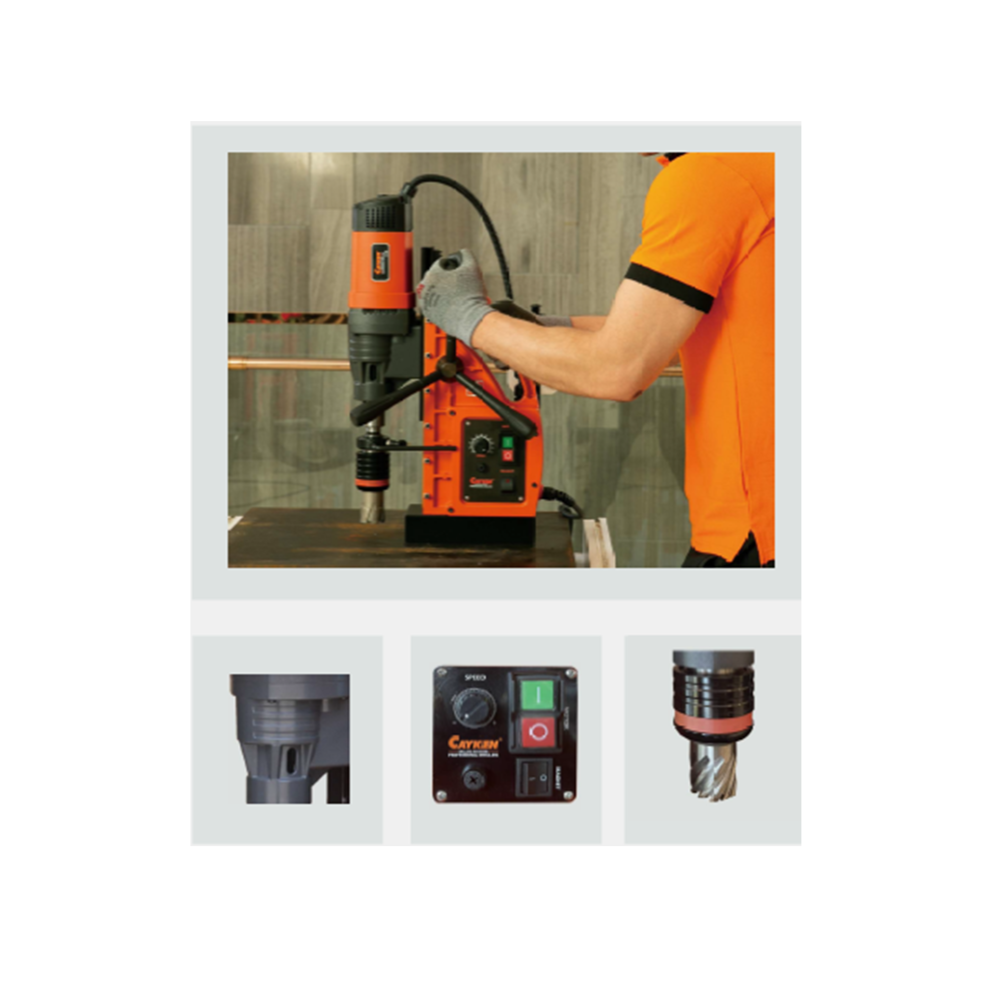

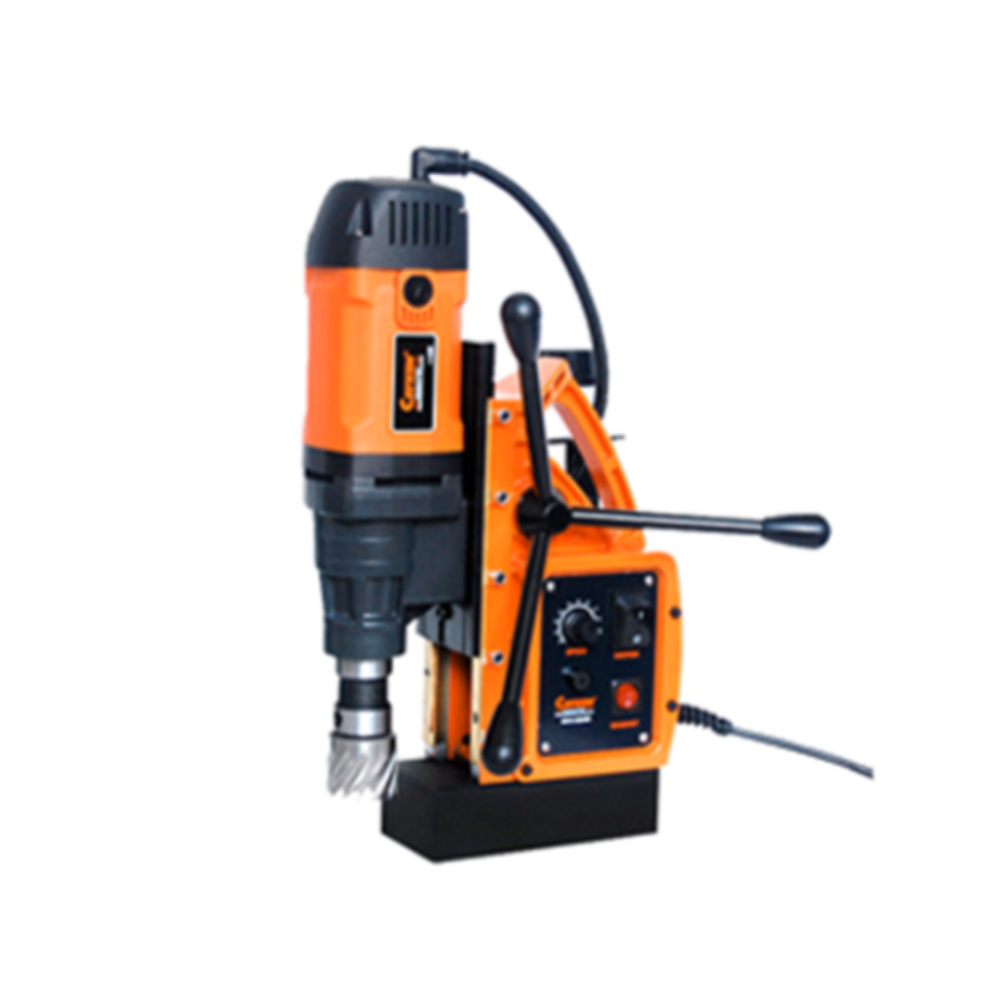

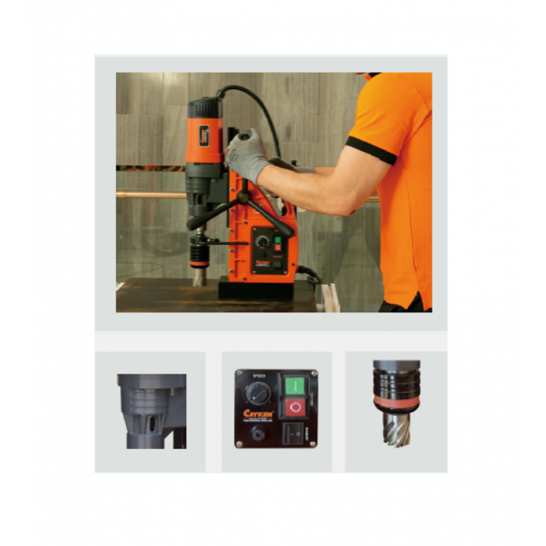

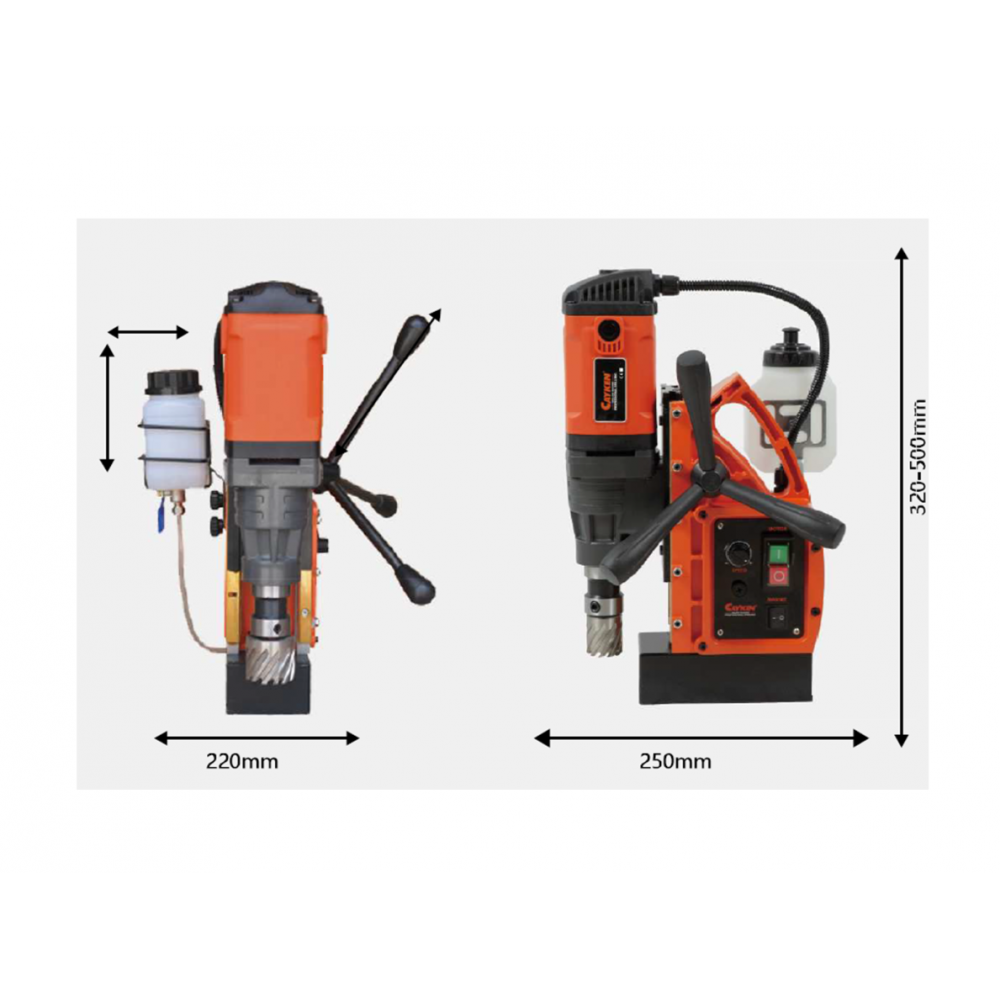

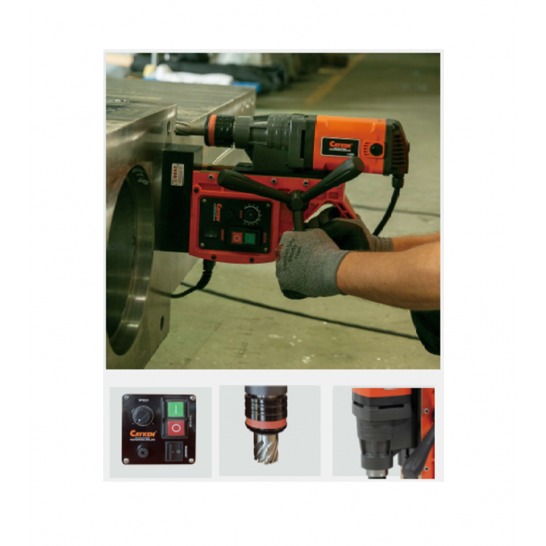

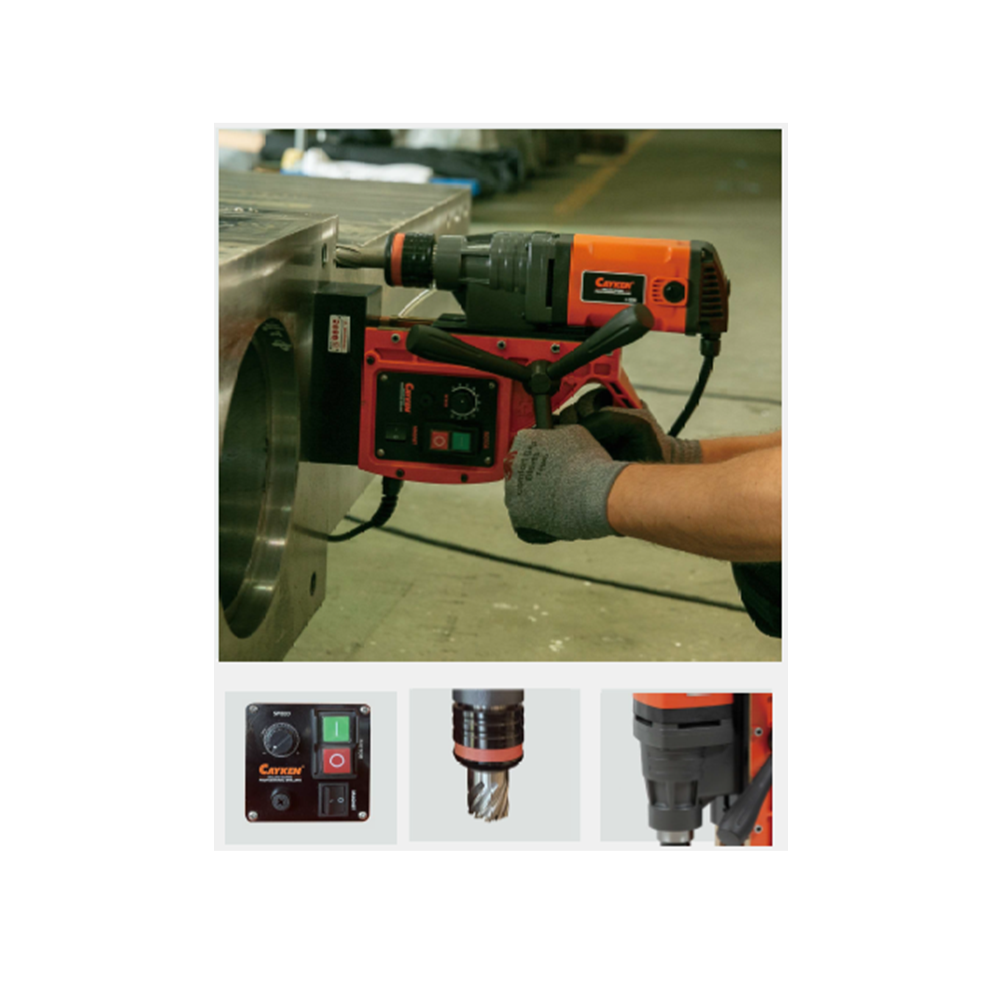

CAYKEN Magnetic Drill Machine 35mm. SCY-35HD

Magnetic Drill Machine

Read moreShow less

Model No.

SCY-35HD

Get a quote

Like0

Description
Specifications

Description

Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level, side face and top face, and widely used in the building, bridge building, and ship building industries and so on. You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces / in field operation. It's very convenient to use, flexible, can reduce labor intensity, improve the machining precision and work efficiency.

Light weight, easy for carrying, high drilling efficiency
Motor gear box fixed on guide
Soft start, stelpless speed, overload speed
Built-in cooling system
Spirit level balance

Function Description:

Twist Drill, Variable Speed, Torque Control, Carbon Brush, Soft Start, Inner Inbrication, Overload Protection

TECHNICAL PARAMETER
PRODUCT MODEL	SCY-35HD	SCY-50HD	SCY-68HD
Core Drill Dia (mm)	35	50	60
Twist Drill Dia (mm)	-	-	23
Rated Volatge (v)	110/220~	110/220~	110/220~
Rated Frequency (Hz)	50-60	50-60	50-60
Rated Input Power (w)	1550	1700	1890
No-load Speed (rpm)	100-830	100-720	100-440
Max Attraction (N)	14800	15600	16000
Cutting Depth (mm)	30	35	40
Stroke (mm)	≥120	≥130	≥220
Cable Length (m)	2.5	2.5	2.5
Magnet Dimension (mm)	1668050	1668050	202102445
Net/gross Weight (Kgs)	≥11/15	≥12/16	≥16/22.5
Packing Size (cm)	571635	571635	611849
Packing Material	Plastic	Plastic	Plastic
Shank	Quickin/ Weldon	Quickin/ Weldon	Quickin/ Weldon/MT2
