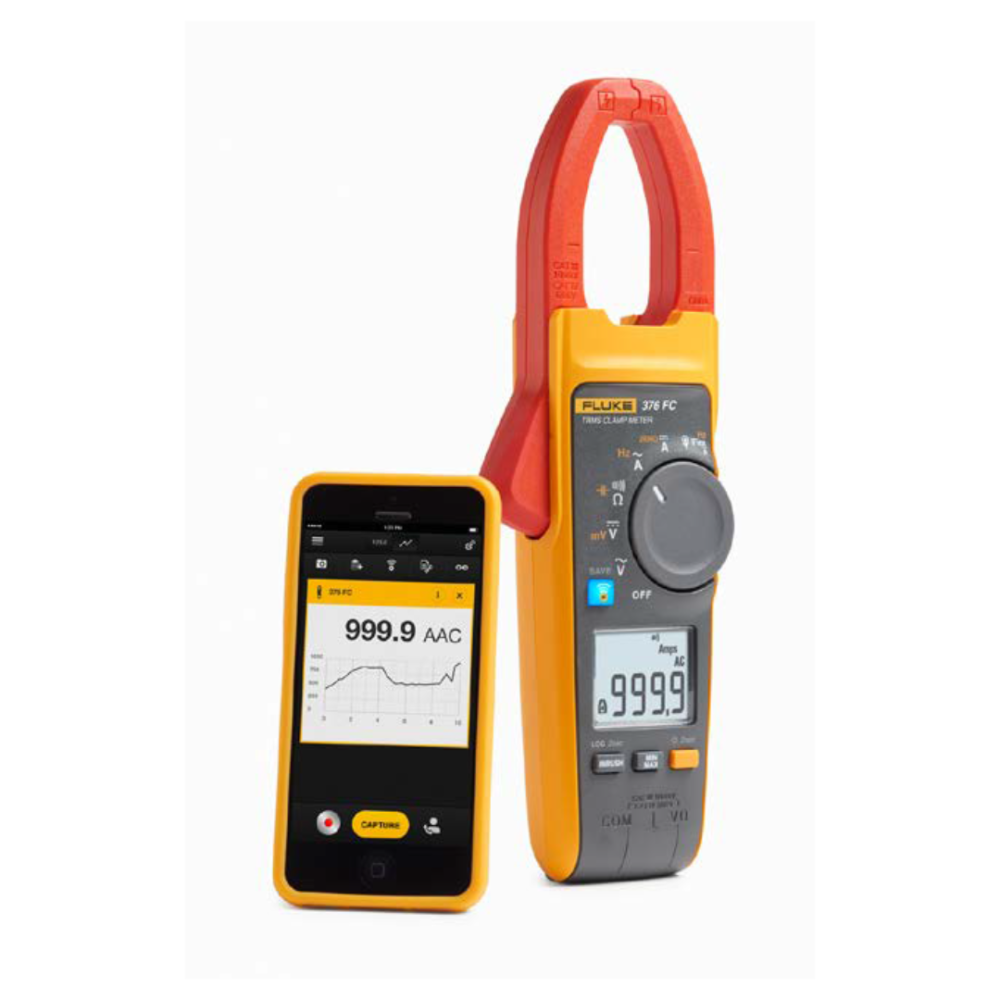

FLUKE 376 FC 1000A AC/DC True-RMS Clamp Meter
5Clamp Meter5
The new Fluke 370 FC Series (376 FC, 375 FC and 374 FC) offers advanced troubleshooting performance. The iFlex® flexible
current probe allows easy connections to wires in tight spaces. In addition, all three clamps are now part of the Fluke Connect®
family of wireless test tools. Now you can:
• Log and trend measurements to pinpoint intermittent faults
• Transmit results wirelessly via Fluke Connect® Measurements app
• Create and send reports right from the field
• Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices
Product highlights
• Connect your meter to your smartphone using Fluke Connect Measurements app to increase the troubleshooting power of your
clamp
• Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
• Record results directly to your phone and the Fluke Cloud™
• Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC and 375 FC
• Create and share reports from the field via email, or converse in real time with ShareLive™ video calls
• iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces
(included with 376 FC; compatible with 375 FC and 374 FC)
Data sheet
- Weight
- 395 g
- Operating temperature
- 10°C – +50°C
- Size
- 249 x 85 x 45 mm
- Battery type
- 2 AA alkaline batteries, NEDA 15A, IEC LR6
- Temperature
- Operating: -10 °C to +50 °C (14 °F to + 122 °F) Storage: -40 °C to +60 °C (-40 °F to + 140 °F)
- Maximum voltage between any terminal and earth ground
- 1000 V
- Jaw opening
- 34 mm
